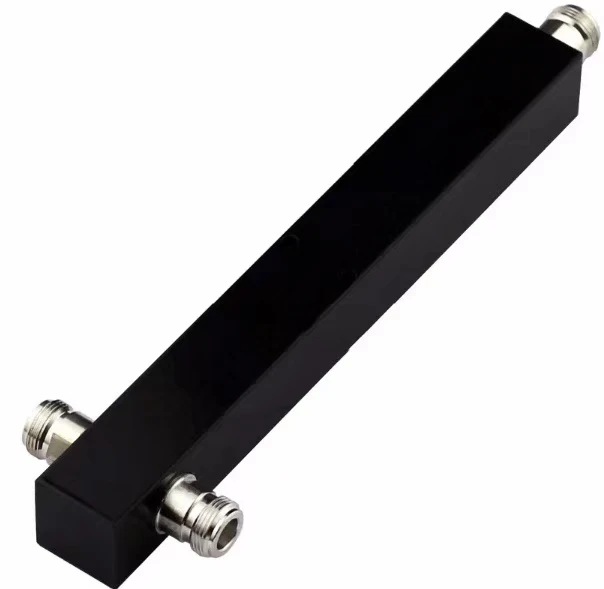

2 way power splitter 555-6000MHz
Model No. | ZHSP-056002N-5F1A | |
Frequency band(MHz) | 555-6000 | 555-6000 |
device in stock | Custom-made device for you | |
Split Loss(dB) | 3.01 | 3db |
Insertion Loss(dB) | ≤1.5 typical<1.4 | 0.4 dB @ 555–2700 MHz 0.5 dB @ 2700–3800 MHz 0.95dB @ 3800-6000 MHz |
Isolation(dB) | >18 typical>19 | 17.7 dB @ 5500–6000 MHz 20.5dB @ 555-5500 MHz
|
VSWR | ≤1.45 typical<1.4 | 1.25:1 @ 555–5500 MHz 1.3:1 @ 5500–6000 MHz |
PIM (dBc) | ≤-153dBc@2X43dBm | ≤-153dBc@2X43dBm 3rd Order IMD Test Method：Two +43 dBm carriers |
Power Rating(W) | Combining power 0.2W Splitting power 30W | Power Rating, combining：0.125 W Power Rating, Splitting：30 W |
Impedance(Ω) | 50 | |
Connector | N-female | |
Color | White | |
Temperature(℃) | -30~+70 | |
Application | Outdoor IP65 | |
Application Scenarios
Company Profile
FAQ
Q1. Are you factory or trading company?
A: We are an manufacturer in Hangzhou, China, have been in this industry for 20 years. You are welcome to visit our factory if you have chance to Hangzhou
Q2. What about the lead time?
A: The leading time depends the quantity you need, Generally speaking, sample needs 1-2 days, mass production time needs 1-2 weeks
Q4: Do you have other products?
A：Yes, we also manufacturePower splitter, Directional coupler, Hybrid coupler, Coaxial termination, attenuators, Filter, Combiner, Diplexer, Triplexer,POI and so on.
