Product overview
| CL-OADM-2500S |
 |

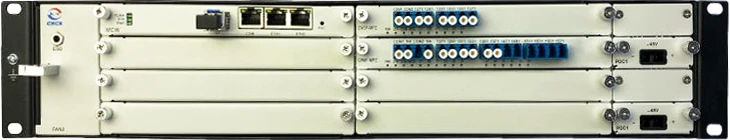

1. 2U Rack Slot Position Description
|
Fan(7) |
Master control Slot(4) |
Business Slot(8) |
|
|
Master control Slot(3) |
Business Slot(7) |
Power supply Slot(10) |
|
|
Business Slot(2) |
Business Slot(6) |
|
|
|
Business Slot(1) |
Business Slot(5) |
Power supply Slot(9) |
2. Business card
| CW3F-MPO | 6-wave business card with protection function |
| CW6F-MPO | 12-wave business card with protection function |
CWDM Solution for 4G/5G Fronthaul

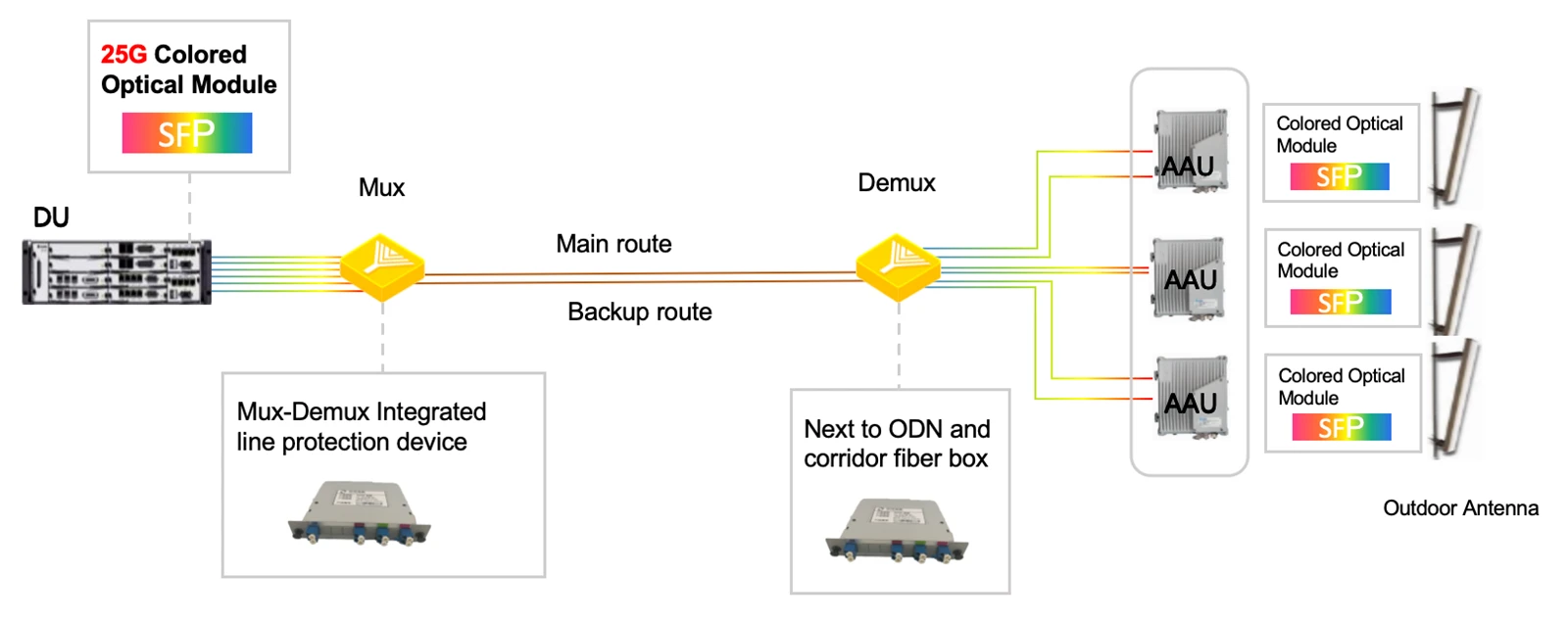

New 5G base station - Semi-active CWDM solution
New 5G base station - Passive CWDM Solution

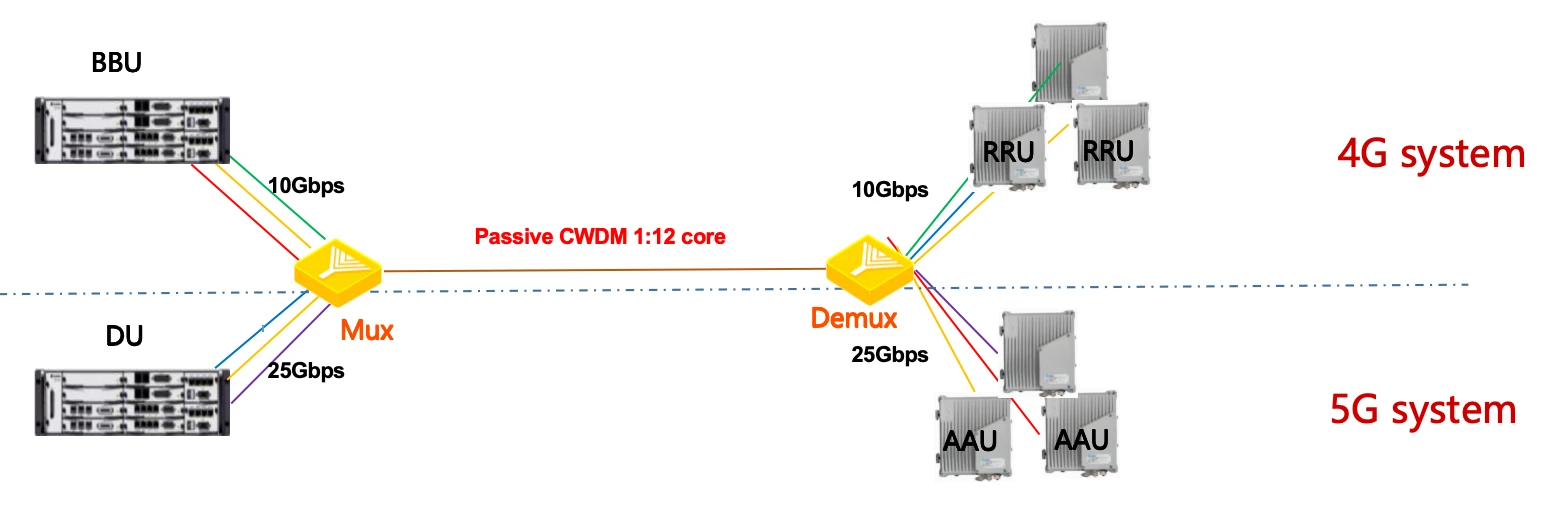

4/5G Hybrid construction
Reuse the original optical cable for SDH
Order information
|
2U CWDM mux(1+1 DC Power)Basic configuration |
||
|
Product Model |
Product Name |
Quantity |
|
CL-OADM-2500S |
2U Rack |
1 |
|
MCW |
Management card |
1 |
|
CW3F-MP |
6-wave business card | up to 4 |
| CW6F-MP | 12-wave business card | up to 4 |
|
PDC1 |
48V Power supply card |
2 |
|
FAN2 |
2U fan |
1 |
|
2U CWDM mux(1+1 AC Power)Basic configuration |
||
|
Product Model |
Product Name |
Quantity |
|
CL-OADM-2500S |
2U Rack |
1 |
|
MCW |
Management card |
1 |
|
CW3F-MP |
6-wave business card | up to 4 |
| CW6F-MP | 12-wave business card | up to 4 |
|
PDC1 |
220V Power supply card |
2 |
|
FAN2 |
2U fan |
1 |
