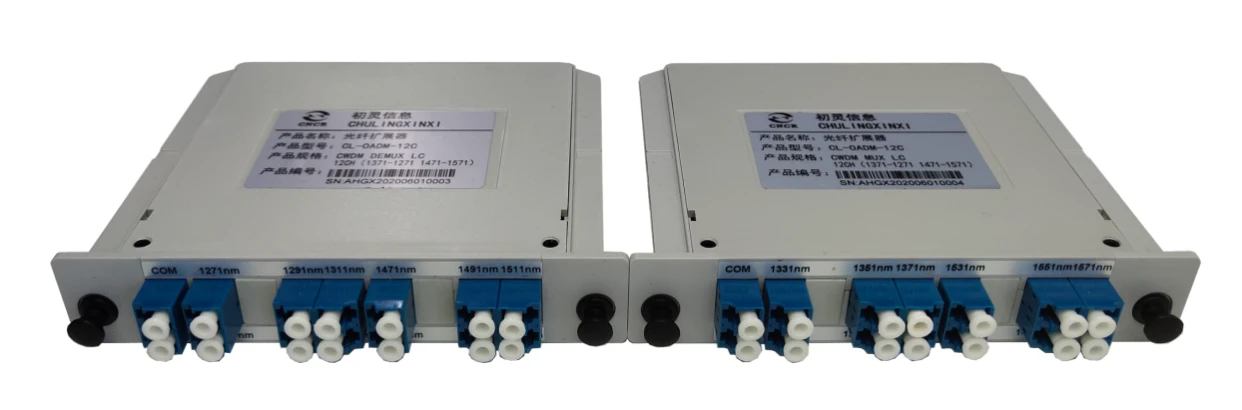

Model |
Connector |
Channel |
|
CL-OADM-CW6F-DP |
LC |
12( 1271-1571) |
Product Specification
|
Specification |
12CH CWDM(Mux+Demux) |
Unit |
|
Channel |
12 |
/ |
|
Center wavelength |
1271~1371,1471~1571 |
nm |
|
Channel sequence |
Mux:1271→1371,1471→1571 |
nm |
|
Demux:1271→1371,1471→1571 |
nm |
|
|
Wavelength interval |
20 |
nm |
|
Center wavelength deviation |
±1.5 |
nm |
|
1dB passband width |
≥13 |
nm |
|
Passband flatness |
≤0.5 |
dB |
|
Insertion loss of Pair channel |
Average≤7.0,Worst≤7.5 |
dB |
|
3. Insertion loss uniformity of pair channel (The difference between the maximum and minimum values of insertion loss between channels) |
≤2.0 |
dB |
|
Isolation degree of adjacent channels |
≥25 |
dB |
|
Non-adjacent channel isolation |
≥30 |
dB |
|
Thermal stability of wavelength |
＜0.002 |
nm/℃ |
|
Thermal stability of insertion loss |
＜0.007 |
dB/℃ |
|
Return loss |
≥40 |
dB |
|
Directional |
≥45 |
dB |
|
Polarization Dependent Loss |
≤0.2 |
dB |
|
Polarization mode dispersion |
≤0.2 |
ps |

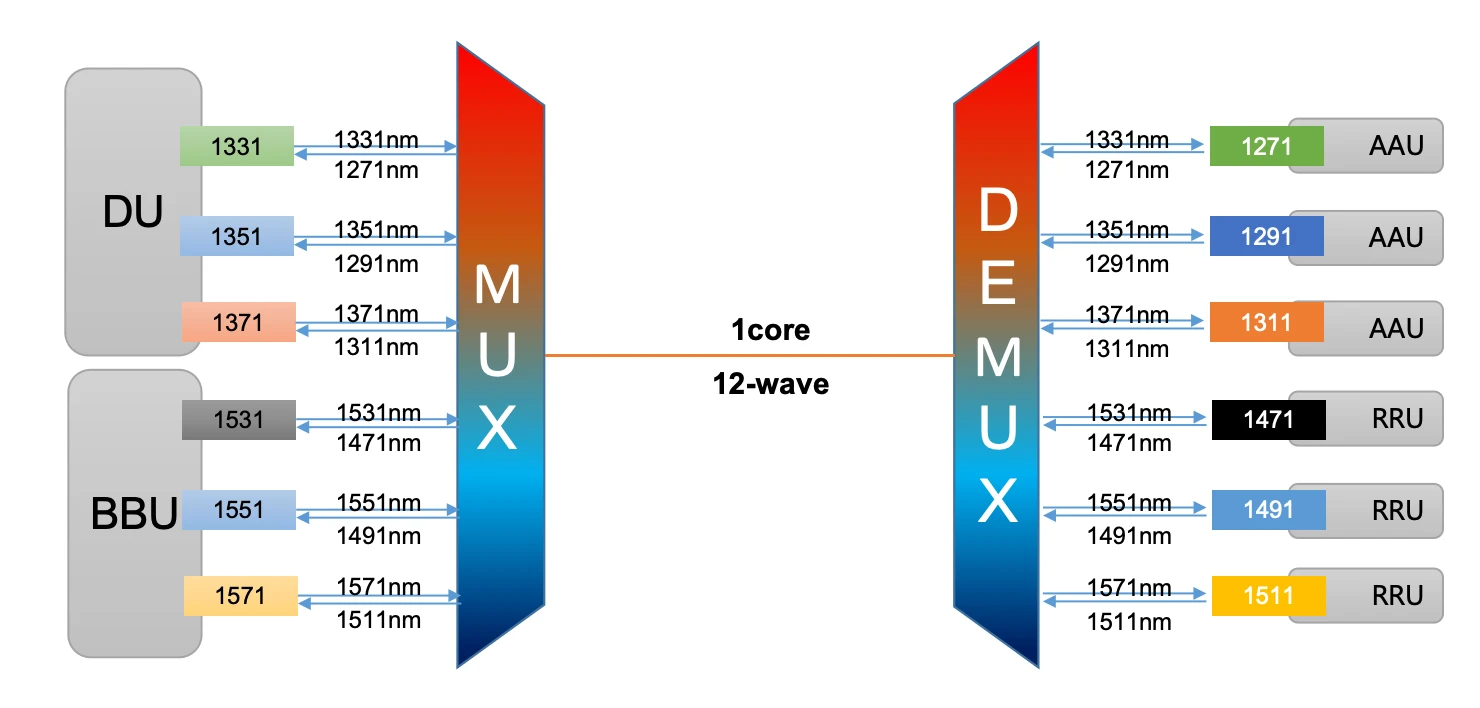

Network Diagram

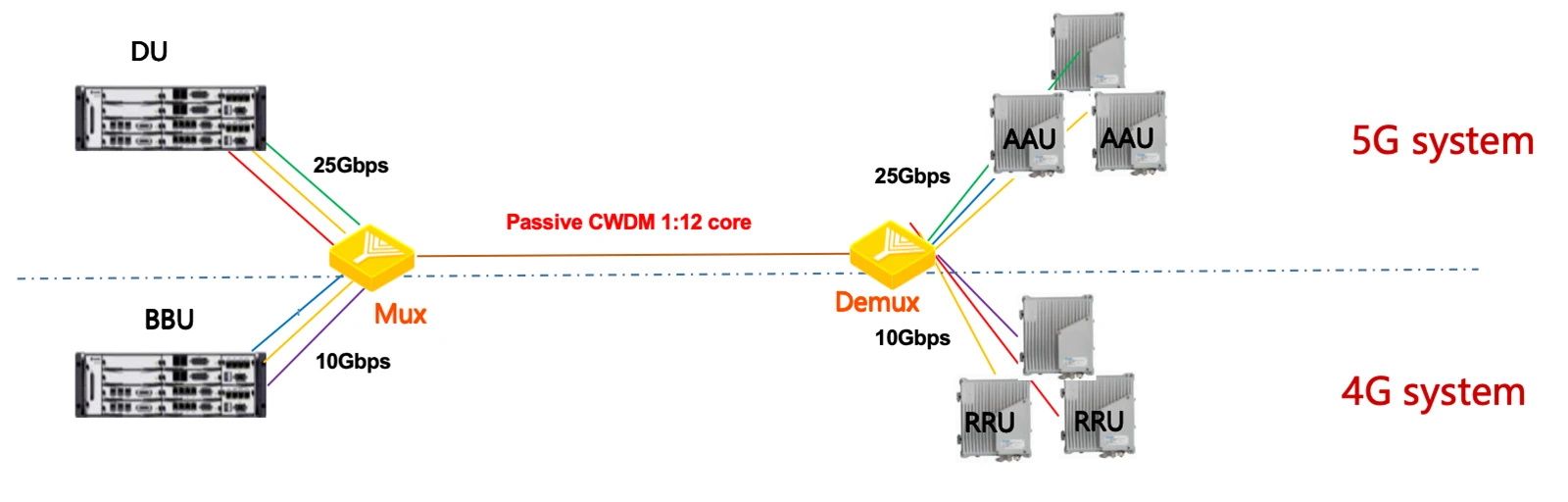

4G/5G mixed transmission
Currently, the 25G optical modules used for 5G fronthaul are already mature in the first six waves. Therefore, in the mixed transmission mode, it is recommended to use 25G in the first six waves and 10G in the last six waves.
|
Equipment name |
Equipment/ optical module |
|||
|
Local |
Remote |
Qty |
||
|
12-wave mux/demux |
CL-OADM-12C |
1 |
1 |
2 |
|
5G base station
25G 10km SFP28 |
CLSFP-G25CL1D(1271) |
1 |
|
1 |
|
CLSFP-G25CL1D(1291) |
|
1 |
1 |
|
|
CLSFP-G25CL1D(1311) |
1 |
|
1 |
|
|
CLSFP-G25CL1D(1331) |
|
1 |
1 |
|
|
CLSFP-G25CL1D(1351) |
1 |
|
1 |
|
|
CLSFP-G25CL1D(1371) |
|
1 |
1 |
|
|
4G base station
10G 10km SFP+ |
CLSFP-XGCLRD(1471) |
1 |
|
1 |
|
CLSFP-XGCLRD(1491) |
|
1 |
1 |
|
|
CLSFP-XGCLRD(1511) |
1 |
|
1 |
|
|
CLSFP-XGCLRD(1531) |
|
1 |
1 |
|
|
CLSFP-XGCLRD(1551) |
1 |
|
1 |
|
|
CLSFP-XGCLRD(1571) |
|
1 |
1 |
|
