Name: 4FXS Analog Voice Gateway
Brand: CNCR
SKU: 148643991

Description

Technical Parameters

ITIBIA IAD1800E Analog Voice Gateway enables an IP telephony solution to continue using traditional analog devices while taking advantage of the productivity afforded by IP infrastructure (Figure 1).

The ITIBIA Unified Communications portfolio of voice and IP communications products and applications enables organizations to communicate more effectively, helping them to streamline business processes, reach the right resource the first time, and improve revenue sales and profitability.

This portfolio is a critical part of the CNCR Business Communications Solution, an integrated solution for organizations of all sizes that also includes network infrastructure, security and network management products, wireless connectivity, and a lifecycle services approach, along with flexible deployment and outsourced management options, end-user and partner financing packages, and third-party communications applications.

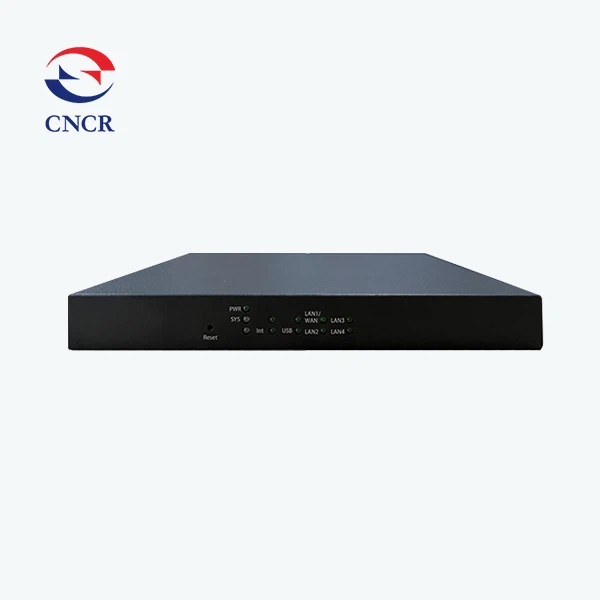

Figure 1 ITIBIA IAD1800E

The Itibia IAD1800E is a Itibia OfficeTen Software-based analog phone voice gateway. It connects analog phones, fax machines, modems, and speakerphones to an enterprise voice system based on Itibia Unified Communications platform. The tight integration with the IP-based phone system is advantageous for increased manageability, scalability, and cost-effectiveness. Businesses can also use the IAD1800E with Itibia Unified Communications Manager Express to effectively augment an Integrated Services Router (ISR) environment. Either topology environment will support business needs for a high concentration of analog voice ports for modem calls, fax calls, and analog supplementary services (Figures 2 and 3).

The ITIBIA IAD1800E offers Itibia OfficeTen Software manageability on analog phone lines to enable them to be used as extensions of the ITIBIA Unified Communications platform.

Features and Benefits

● Itibia IAD1800E Office Ten Software-based hardware: The hardware supports a uniform Itibia Command-Line Interface (CLI) and Simple Network Management Protocol Version 3 (SNMPv3) for ease of gateway configuration and operation.

● Robust voice quality: Cisco experience in providing toll-quality packet-voice service helps ensure that the VG400 provides the clear, robust voice quality end users have come to expect from telephony services.

● Investment protection: Customers can continue to use existing analog phones, fax machines, and modems while taking advantage of IP telephony. Basic analog phone connectivity is needed when the infrastructure (wiring) or application does not support or require IP phones. The Itibia IAD1800E is the ideal platform to support distributed and low- to medium-density analog phone line deployments, allowing organizations to deploy IP telephony without having to purchase IP phones for all users and to continue using existing devices.

● Reduced barrier to entry: The Itibia IAD1800E provides a low-cost alternative for low-end analog phones and allows organizations to take advantage of IP telephony with a lower overall IP telephony investment.

product-1644-1094

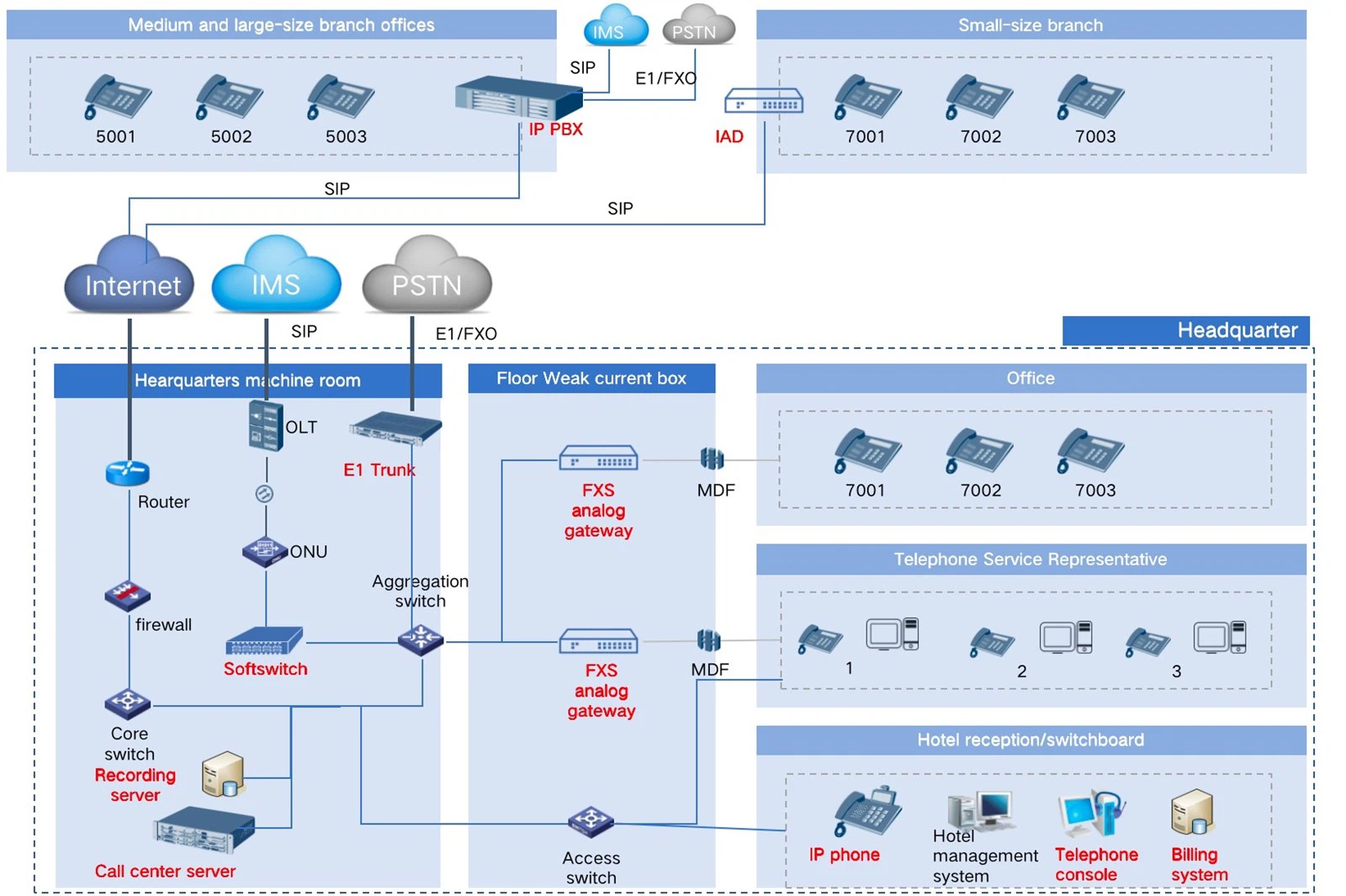

Figure 2.

IAD1800E Integration with Itibia Unified Communications platform

IAD1800E Models

Hardware

Product model	IAD1800G-S4	IAD1800G-S8	IAD1800G-S16	IAD1800E-S32	IAD1800E-S64
Network interface	4GE
FXS port	4	8	16	32	64
USB	1 Full/High Speed USB Port
Power consumption	15W	20W	35W	45W	50W
Case	1U,Metal material
Temperature and Humidity	-5℃～55℃,<95%(Non-condensing)
Reliability	7×24hours,> 99.999%;MTBF>50000
Working air pressure	86KPa~106KPa
Dimension(LWH)	21214926mm	22214943.5mm	32020043.5mm	44022443.5mm	448x300x44.5mm

Software

Function	Description
Voice protocol	IMS/NGN SIP, H.248 SIP v2.0, RFC3261, SDP, RTP(RFC2833) RFC3262, 3263, 3264, 3265, 3515, 2976, 3311 RTP/RTCP, RFC2198, 1889, RFC4028 Session Timer RFC3266 IPv6 in SDP, RFC2806 TEL URI, RFC3581, NAT, rport
Voice processing	Codec: G.711A, G.711U, G.729, G.723.1, G.722 Echo cancellation: G.168, tail length 64 ms Support Voice Activity Detection(VAD) Support DOTSCP/TOS tags Digitmap
Voice service	Support basic call: caller ID, call forwarding, three-way call, hot line; Implementation with IPPBX/IMS: call number display limit, unconditional call forward, busy call forward, no reply call forward, find malicious call, call out limit, do not disturb, shrink dialing, alarm clock, busy callback, call waiting, call holding, etc.
Fax	Supports T.30, T.38 fax
Data	Support static IP, DHCP Client, PPPoE, WAN sub-interfaces Support routing mode, bridge mode DDNS, Static routing, NAT, port mapping, uPnP, virtual domain name, ALG, DNS, NTP, DHCP service QoS policy, broadband policy
QoS	Support speed limit based on VLAN, IP address segment, port, protocol Support 802.1p and DOTSCP marks on traffic Support to set traffic priority and secure bandwidth for critical services
Network management	Support local Web, SNMP, TR069, SYSLOG
