IPPBX (IP Private Branch Exchange), the device supports IP trunk access to the operator's IMS core network, access to the PSTN (Public Switched Telephone Network) through digital trunk / analog trunk, and IPPBX connection Terminals such as IAD, analog phones, fax machines, POS machines, and IP phones can provide powerful voice functions and telephone services.
|
| IPPBX 1800-S32O8 |
Product Hardware
Classification | Product model | IPPBX1800G-S32O8 |
Equipment appearance | Dimension（L*W*H） | 440*224.5*44mm |
Chassis | 1U，Metal Material | |
Interface | FXS port | 32 |
FXO port | 8 | |
ETH port | 1*WAN+3*LAN，4*GE（RJ45） | |
USB port | 1*full/High Speed USB2.0 port | |
Console port | 1*Console port，RJ45，115200bps | |
Operating environment | Power | 45W |
Voltage | AC 110V-240V | |
Temperature and humidity | -5℃～55℃，<95%（Non-condensing） | |
Barometric pressure | 86KPa~106KPa | |
Reliability | 7×24hours，Reliability is greater than 99.999%；MTBF>50000 |
Production function
Data function | Access function | Static IP、DHCP Client、PPPoE、WAN sub interface |
Operating mode | Support gateway、 bridge | |
IP function | DDNS、Static routing、NAT、Port Mapping、UPnP、Virtual Domain Service、ALG、DNS、NTP、DHCP SEVER | |
Traffic Management | QoS strategy、Broadband strategy | |
QoS | VOIP QoS Service | |
Voice function | Phone type | SIP Phone：IP Telephone、Video Telephone、Softphone |
Trunk type | Analog Trunk、SIP/IMS Trunk | |
Voice Codecs | G.711U、G.711A、G.723、G.729、iLBC | |
Video Codecs | H263、H264（pass-through） | |
DTMF | RFC2833、SIP info and inband | |
FAX | T.30、T38 | |
Operation statistics | Call Detail Records | |
Call control | Outbound Call Routing、Inbound Call Routing、Number Transfer、Dial Rule | |
Calling Number Identification Service (CNIS)、Dialed number identification service(DNIS) | ||
Voice service | Check Own Number、Caller ID Display、Caller ID Display Limit、Unconditional call forwarding、Call forward on busy、Call Transfer No Answer、Blind Transfer、Inquiry transfer、Call Waiting 、The call to keep、Call Parking、3-way conference call、Abbreviated dialing、Call Blocking、Co-group Blocking、Black list、Call Time Limit、Do Not Disturb (DND)、Phone Logout、Group Pickup、Appointed Pickup、Instant Hotline、Delay HotLine、Ringing All、round robin ringing、Alarm clock、VIP Class、Recording and playback、Multiple trombones correspond to an extension number、Voice mail、Music Ring、Queue、Interactive Voice Response、Through a number、Call billing、Call Recording、Video Calls | |
Security management | Access control | WEB control、Deny ping、SSH、SIP |
Access Control Lists | Access Control Lists | |
ARP anti-attack | Mac-ip address binding、ARPDefense | |
DDoS anti-attack | Ping of death、Teardrop、TCP Flood、UDP Flood、Traceroute、IP Spoofing、Port Scan、WINNUKE Attack | |
VPN | IPsec、L2TP、PPTP | |
VOIP anti-attack | SIP registered account verification、SIP registered IP address verification、Call duration limit、Traffic monitoring | |
System | Administration | WEB、Console、SSH |
Remote management | SNMP、TR069 | |
System Tool | Ping、Traceroute、Ifconfig、Route、HttpGet、DNS Quey | |
CDR Management | check log、log settings | |
System maintenance | Backup and Recovery Configuration、Upgrade、Factory Default Setting、Time Settings |
Application Scenario

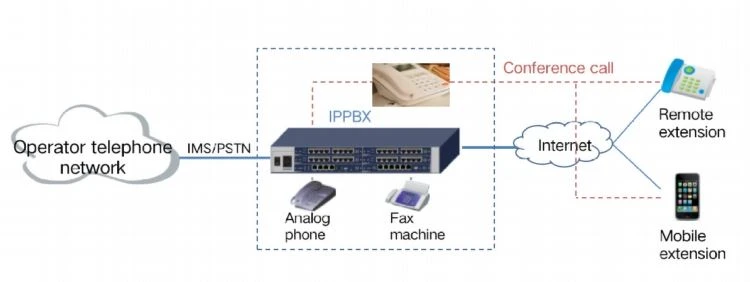

Telephone conference solution
♦ Hold and manage meetings through Web, telephone and soft terminal anytime and anywhere
♦ Appointment and instant meeting, system call and user dial-in
♦ PSTN, VoIP, internal extension of a variety of access
