Production function
|
Voice function |
Phone type |
SIP Phone：IP Telephone,Video Telephone,Softphone |
|
Trunk type |
Analog Trunk,SIP/IMS Trunk |
|
|
Voice Codecs |
G.711U,G.711A,G.723,G.729,iLBC |
|
|
Video Codecs |
H263,H264(pass-through) |
|
|
DTMF |
RFC2833,SIP info and inband |
|
|
FAX |
T.30,T38 |
|
|
Operation statistics |
Call Detail Records |
|
|
Call control |
Outbound Call Routing,Inbound Call Routing,Number Transfer,Dial Rule |
|
|
Calling Number Identification Service (CNIS),Dialed number identification service(DNIS) |

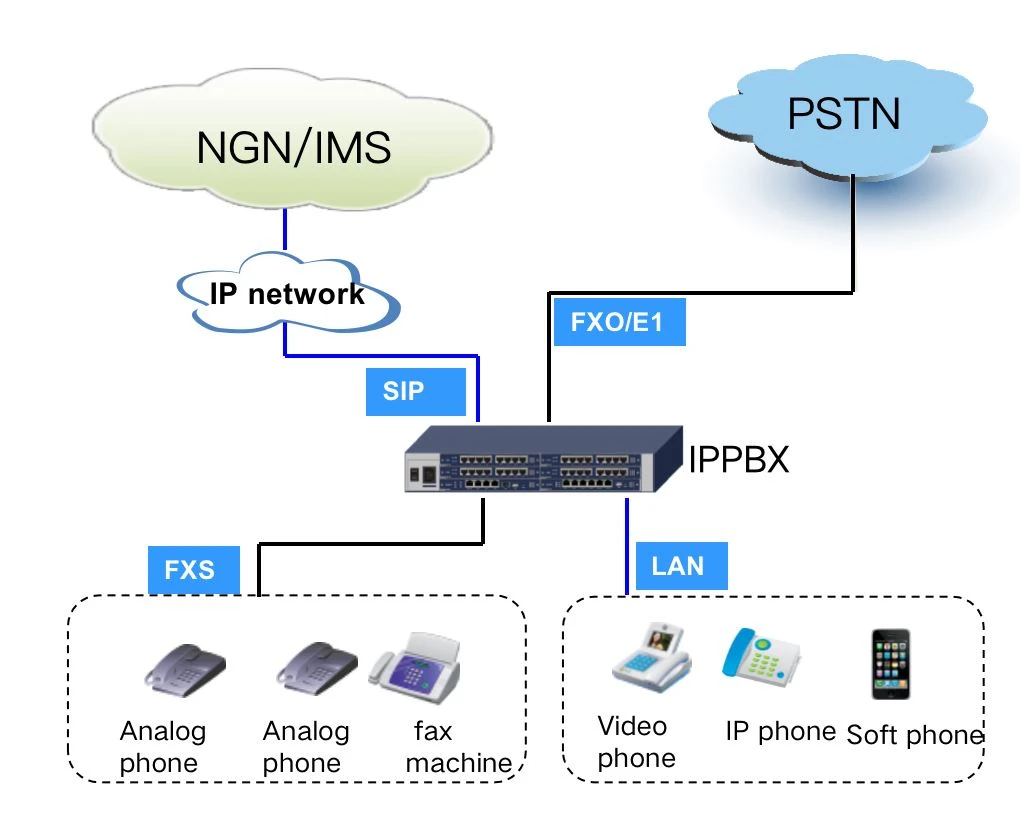

Application Scenario
Small and medium-sized enterprises to build a new independent network
- NGN/IMS IP relay access is supported
- Support PRI/SS7/R2 digital E1 relay access
- Supports FXO analog relay access
- Provides the whole network call processing, realizes the access office and the inside office call
- The remote extension based on IP not only improves the freedom of communication but also reduces the communication cost
IPPBX Product Introduction (Integrated)
64FXS-IPPBX1800-S64

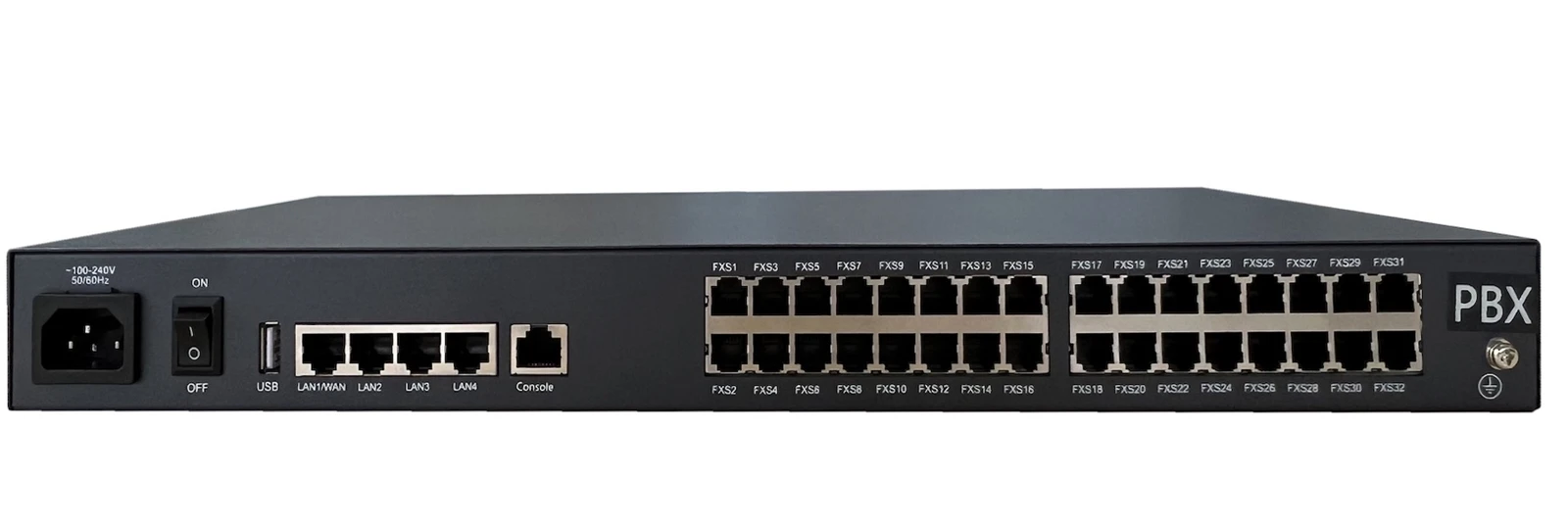

32FXS-IPPBX1800-S32
16FXS-IPPBX1800-S16
8FXO-IPPBX1800-O8
4FXO-IPPBX1800-O4
Supports up to 200 SIP user registrations, metal housing, Gigabit Ethernet port. Supports IVR voice navigation, call transfer, call waiting, call pickup and other value-added services.
Related IPPBX Products(Card Type)

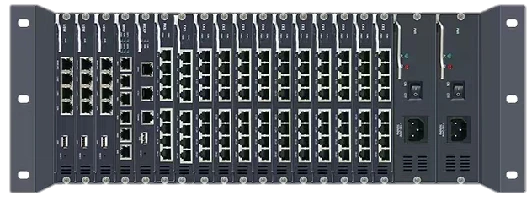

IPPBX2800H Series-IPPBX2800H-256
Maximum 256FXS
Supports registration for up to 500SIP users, with a pluggable card design and optional 32portFXS/FXO card and 4E1 card.
IPPBX2800H Series-IPPBX2800H-128
Maximum 128FXS
Supports registration for up to 500SIP users, with a pluggable card design and optional 32portFXS/FXO card and 4E1 card.
IPPBX3800 Series-IPPBX3800
Maximum 384FXS
Supports registration for up to 500SIP users, with a pluggable card design and an optional 32portFXS card. Optional dual main control and dual power supply.
