Product Hardware
|
Classification |
Product model |
IPPBX1800G-S64 |
|

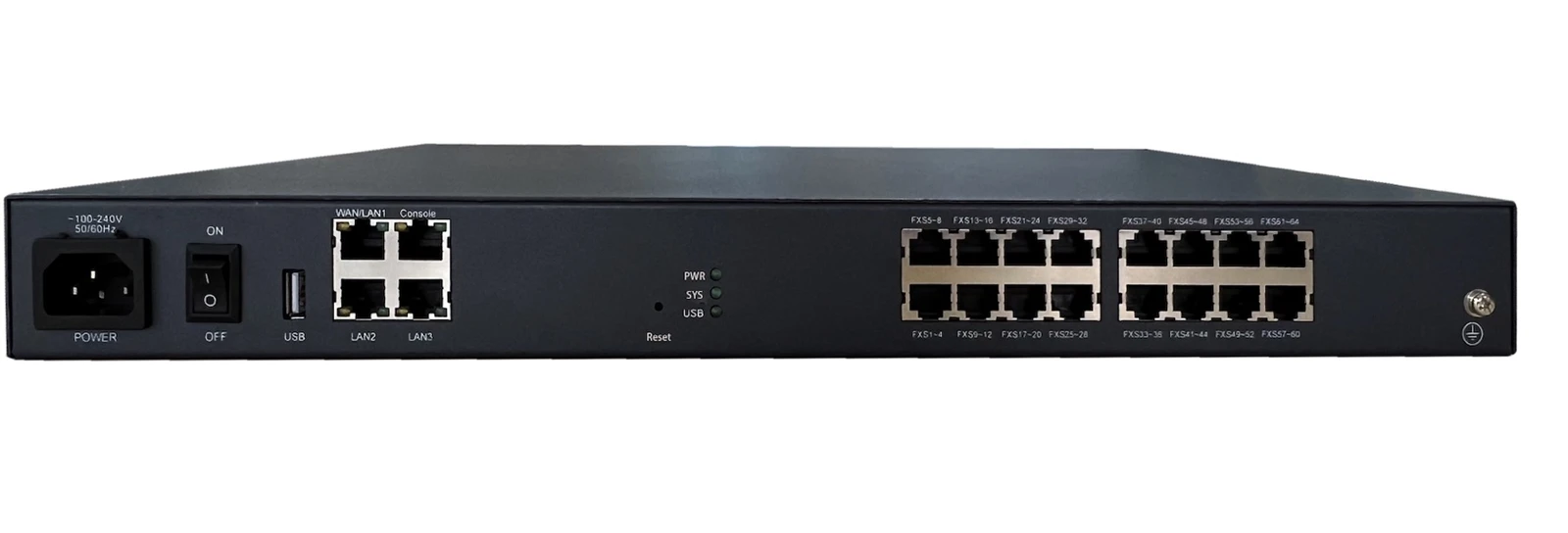

Equipment appearance |
Dimension(L*W*H) |
448*300*44.5mm |
|
Chassis |
1U,Metal Material |
|
|
Interface |
FXS port |
64 |
|
FXO port |
- |
|
|
ETH port |
1*WAN+2*LAN,3*GE(RJ45) |
|
|
USB port |
1*full/High Speed USB2.0 port |
|
|
Console port |
1*Console port,RJ45,115200bps |
|
|
Operating environment |
Power |
60W |
|
Voltage |
AC 110V-240V |
|
|
Temperature and humidity |
-5℃～55℃,<95%(Non-condensing) |
|
|
Barometric pressure |
86KPa~106KPa |
|
|
Reliability |
7×24hours,Reliability is greater than 99.999%;MTBF>50000 |
Production Software
|
Data function |
Access function |
Static IP,DHCP Client,PPPoE,WAN sub interface |
|
Operating mode |
Support gateway, bridge |
|
|
IP function |
DDNS,Static routing,NAT,Port Mapping,UPnP,Virtual Domain Service,ALG,DNS,NTP,DHCP SEVER |
|
|
Traffic Management |
QoS strategy,Broadband strategy |
|
|
QoS |
VOIP QoS Service |
|
|
Voice function |
Phone type |
SIP Phone：IP Telephone,Video Telephone,Softphone |
|
Trunk type |
Analog Trunk,SIP/IMS Trunk |
|
|
Voice Codecs |
G.711U,G.711A,G.723,G.729 |
|
|
Video Codecs |
H263,H264(pass-through) |
|
|
DTMF |
RFC2833,SIP info and inband |
|
|
FAX |
T.30,T38 |
|
|
Operation statistics |
Call Detail Records |
|
|
Call control |
Outbound Call Routing,Inbound Call Routing,Number Transfer,Dial Rule |
|
|
Calling Number Identification Service (CNIS),Dialed number identification service(DNIS) |
||
|
Security management |
Access control |
WEB control,Deny ping,SSH,SIP |
|
Access Control Lists |
Access Control Lists |
|
|
ARP anti-attack |
Mac-ip address binding,ARPDefense |
|
|
DDoS anti-attack |
Ping of death,Teardrop,TCP Flood,UDP Flood,Traceroute,IP Spoofing,Port Scan,WINNUKE Attack |
|
|
VPN |
IPsec,L2TP,PPTP |
|
|
VOIP anti-attack |
SIP registered account verification,SIP registered IP address verification,Call duration limit,Traffic monitoring |
|
|
System |
Administration |
WEB,Console,SSH |
|
Remote management |
SNMP,TR069 |
|
|
System Tool |
Ping,Traceroute,Ifconfig,Route,HttpGet,DNS Quey |
|
|
CDR Management |
check log,log settings |
|
|
System maintenance |
Backup and Recovery Configuration,Upgrade,Factory Default Setting,Time Settings |
Application Scenario

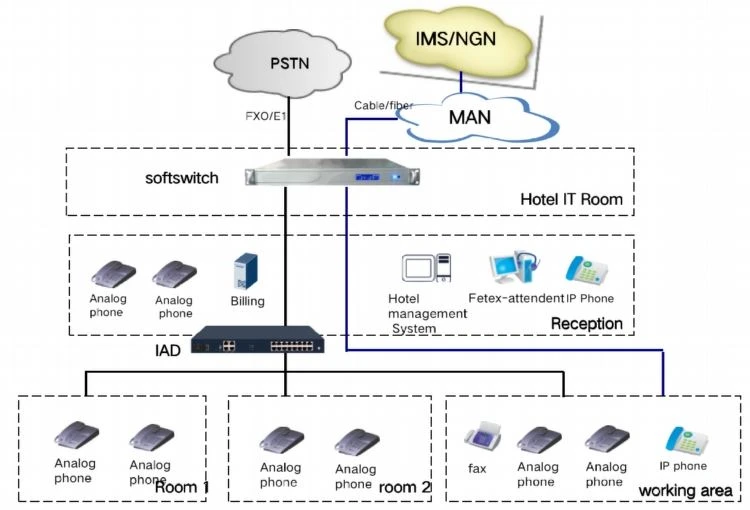

Hotel VOIP solution
