This LTE CPE is developed based on several worldwide proven chipset solutions, integrated with the high technologies in LTE CAT4, WIFI Hotspot, Ethernet LAN and Web-UI management.
Product Specification
| Hardware | |
|

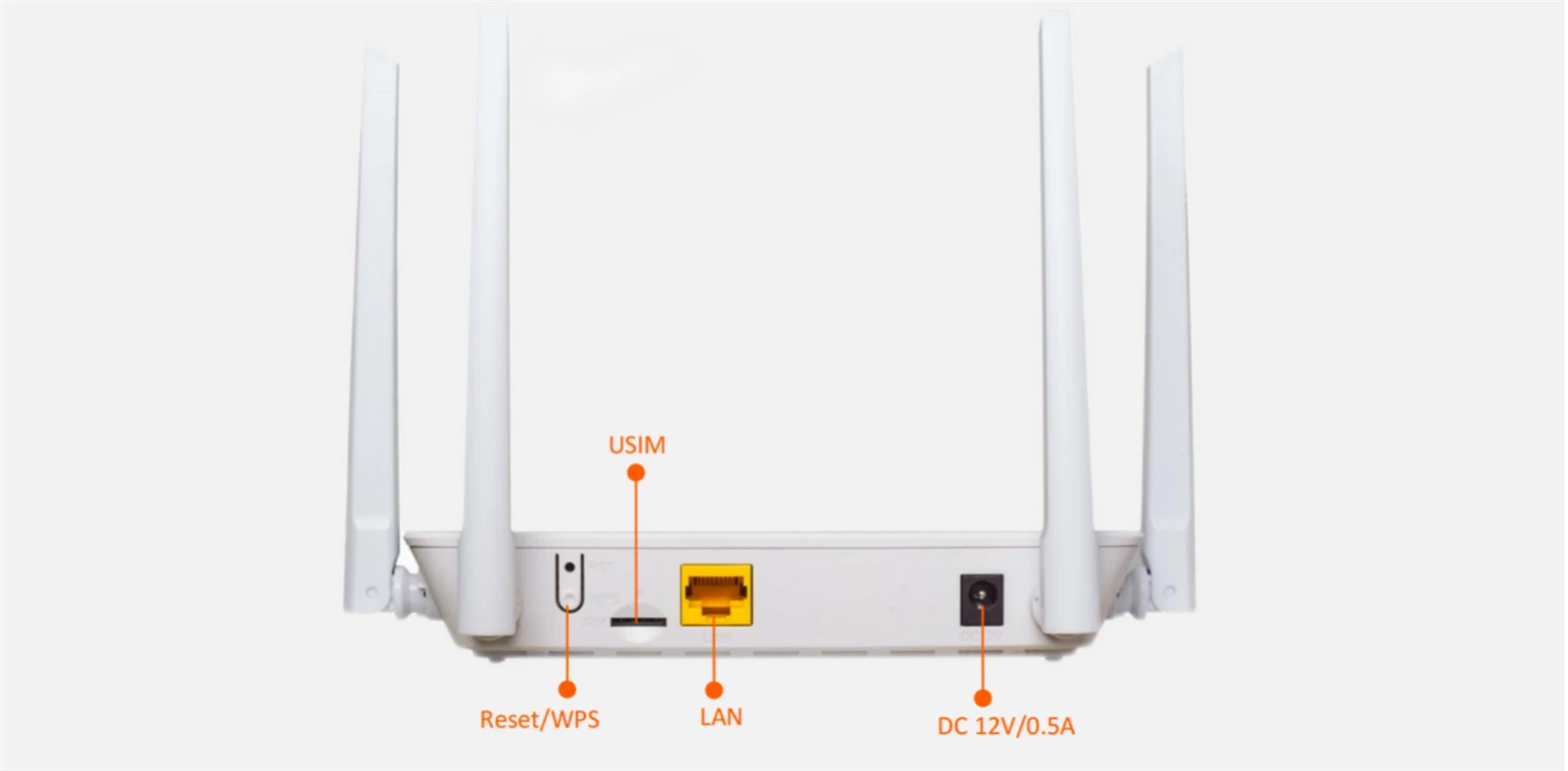

Interfaces
|
1FE+USIM+WiFi
|
|
Buttons
|
Reset/WPS
|
|
Indicators
|
POWER, WiFi, LAN, DATA , LTE
|
|
Power consumption
|
≤12W
|
|
Power adapter
|
DC 12V,0.5A
|
|
Operating temperature
|
-20°C ~ +45°C
|
| Storing temperature |
-20°C ~ +60°C
|
|
WLAN Feature
|
|
|
Wi-Fi Frequency
|
2.4GHz, 1~13Channel
|
|
Transmitted Power
|
• 17±2dBm @ 802.11b
• 15±2dBm @ 802.11g
• 14±2dBm @ 802.11n
|
|
Received sensitivity
|
• <-76dBm at the antenna port, QPSK,11Mbps,1024 Byte PSDU @802.11b
• <-65dBm at the antenna port, 64QAM,54Mbps,1024 Byte PSDU @802.11g
• -64dBm at the antenna port, 64QAM, 65Mbps,4096 Byte PSDU @802.11n(HT20)
|
|
WiFi Antenna
|
1*External Antenna
|
|
Protocol
|
802.11b/g/n
|
|
Data Rate
|
• 802.11b:Up to 11 Mbps
• 802.11g: Up to 54 Mbps
• 802.11n: Up to 72.2 Mbps
|
|
LTE WAN Feature
|
|
|
Frequency Bands
|
EU model:
• FDD LTE: B1/B3/B5/B7/B8/B20/B28
• TDD LTE: B38/B40/B41
• UMTS: B1/B5/B8
AU model：
•LTE-FDD: B1\B2\B3\B4\B5\B7\B8\B28\B66
•LTE-TDD: B40
•WCDMA: B1\B2\B4\B5\B8
|
|
Bandwidth
|
1.4/3/5/10/15/20 MHz, comply with 3GPP
|
| Modulation |
• DL: QPSK/16-QAM/64-QAM, comply with 3GPP
• UL: QPSK/16-QAM, comply with 3GPP
|
| LTE Antenna |
2*External LTE Antennas
|
| RF Power |
• LTE: Power Class 3 (23 dBm + 2.7/-3.7dB)
• UMTS: Power Class 3 (24 dBm +1.7/-3.7dB)
|
|
Data Rate
|
4G: 3GPP R9 Cat4,
FDD：DL/UL up to 150Mbps/50Mbps,
TDD：DL/UL up to 110Mbps/10Mbps
3G: 3GPP R7 DL/UL up to 21Mbps/5.76Mbps
|
|
Function
|
|
|
Interfaces
|
LAN: 1*RJ45 with 10/100Mbps
|
|
USIM
|
Single, Standard SIM slot 4FF
|
|
System
|
Connection Status / Statistics / Device Management
|
|
Language
|
Chinese / English / Español / Português, Customized
|
|
Mobile Service
|
• SMS Manager
• Auto-APN according to USIM
• Auto Data Connection
• USSD Service
• PIN/PUK Management
• Network Mode Selection(3G/LTE/Auto)
|
|
Router
|
• Support SSID, APN management,IPv4
• DHCP Server, Dynamic IP, Static IP
• Access Control, Local Management
• Support OPEN, WPA2(AES)-PSK, WPA-PSK/WPA2-PSK
• Firewall
• PORT Filtering/ Port Mapping/ Port Forwarding
|
|
Management
|
TR069/FOTA
|
|
Operating System
|
• Windows 7/8/XP/10
• MAC OS 10.10+
• Andriod 10/11
• Linux Ubuntu 15.04+
• Browser Edge, Firefox, Google Chrome,
Safari, Opera
|
