Model |
Connector |
Channel |
|

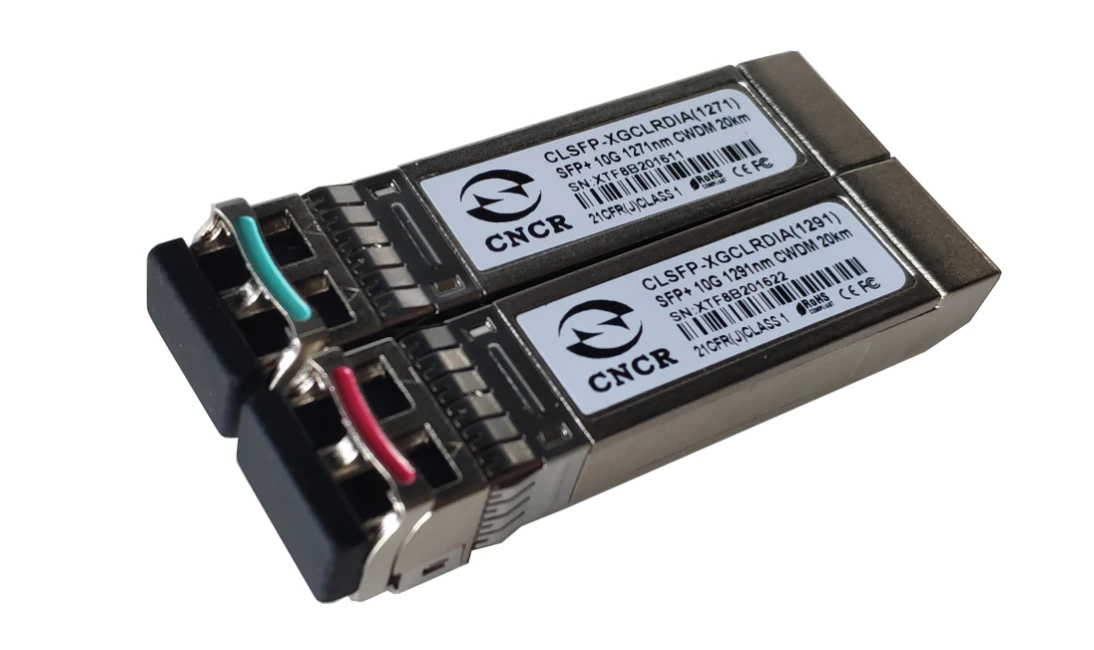

CLSFP-XGCLRDIA 1271/1291 |
LC |
10G/20km |
|
Optical module Type |
Transmit wavelength (nm) |
Transmit optical power (dBm) |
Overload point (dBm) |
Extinction ratio (dB) |
Receive sensitivity (dBm) |
Center wavelength offset (nm) |
|
10G CWDM |
1271~ 1491 |
+1~+7 |
≥1 |
>3.5 |
≤- 13 |
≤±6.5 |
|
25G CWDM |
1271~ 1371 |
+1~+7 |
≥1 |
>3.5 |
≤- 13 |
≤±6.5 |
|
Specification |
Unit |
Indicators |
|
Work zone |
nm |
1271~1611(Wavelength is optional) |
|
Insertion loss |
dB |
6 waves ≤ 2.5 12 waves ≤ 3.5 18 waves ≤ 4.5 |
|
Isolation |
dB |
≥40 |
|
Return loss |
dB |
≥45 |
|
Directional |
dB |
≥55 |
|
Work rate |
Gbps |
155M～10G |
|
Optical connector |
|
LC/SC/FC |

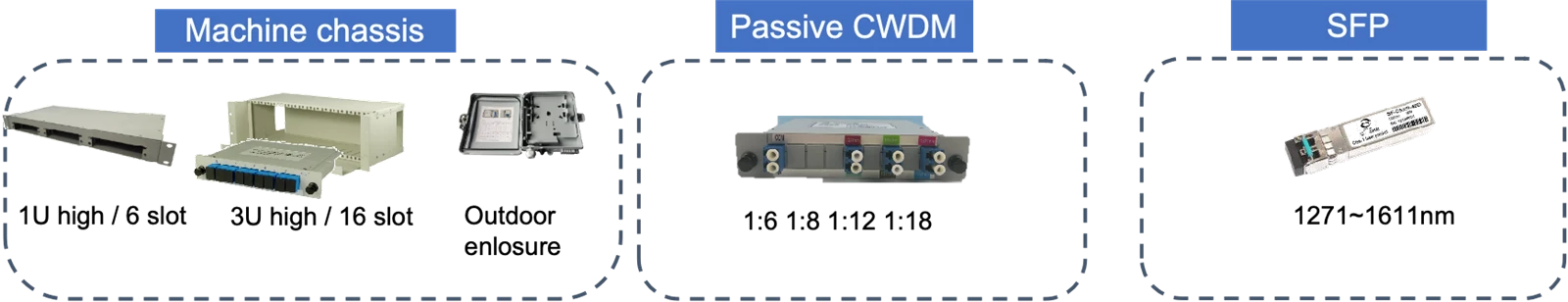

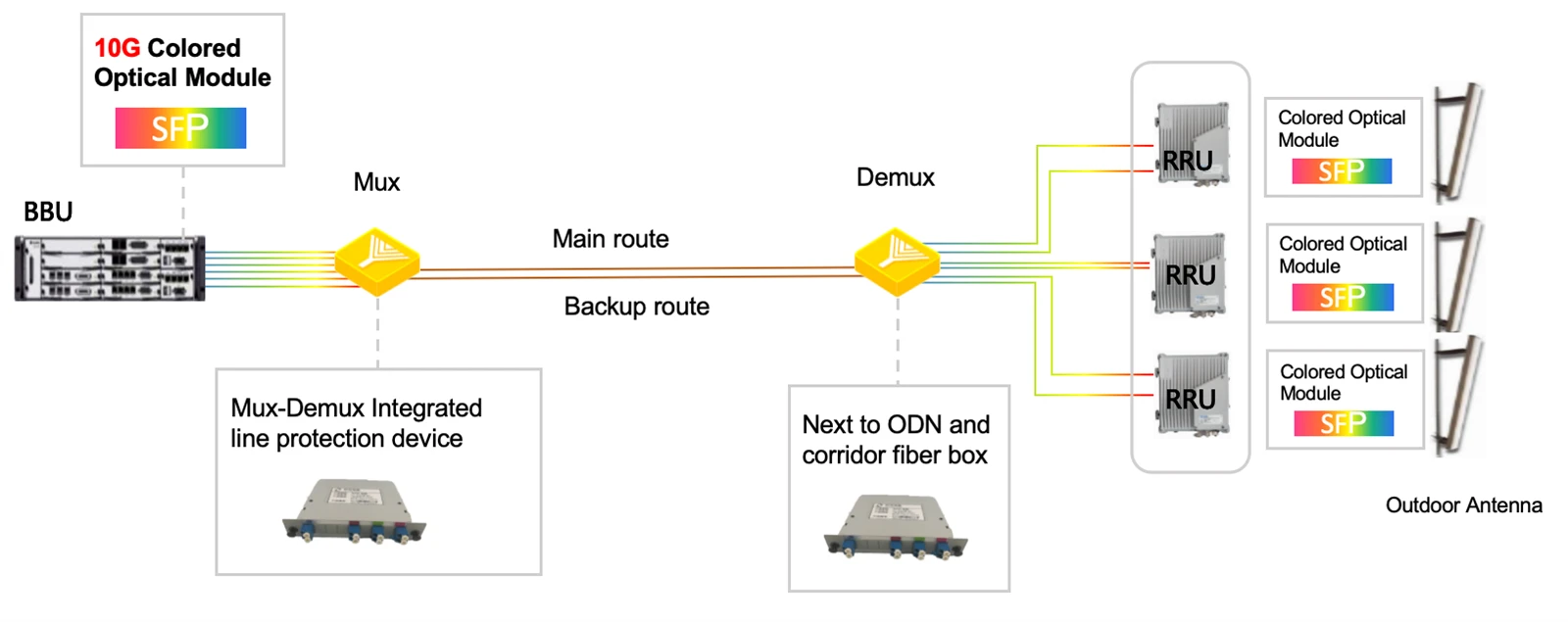

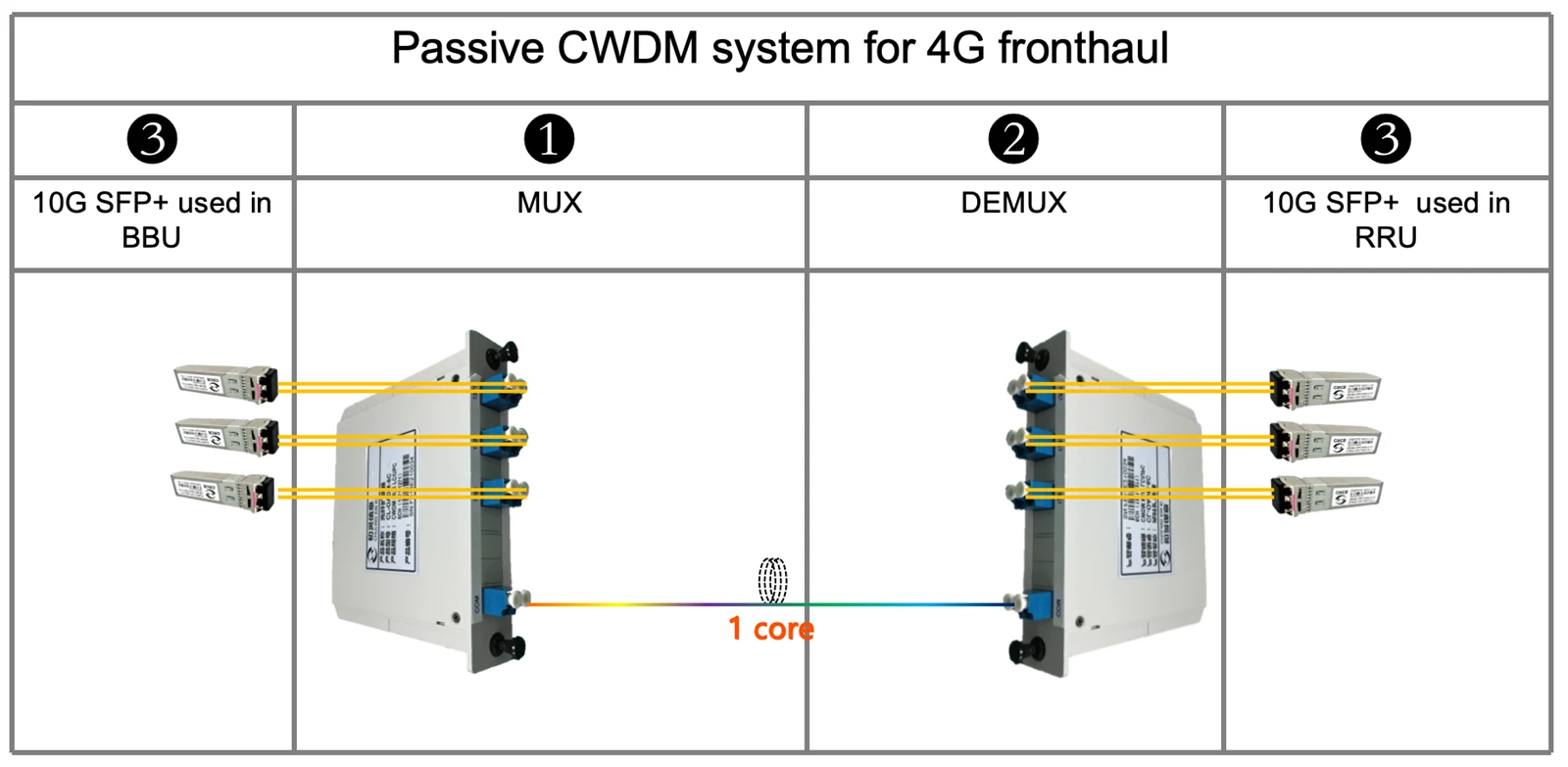

Passive Fiber Expension System
Order Information
|
CWDM / 6 waves / 25G / 10Km |
||
|
Model |
Description |
Quantity |
|
CLSFP-G25CL1DI( 1271) |
6w, 25G, 10Km, 1271nm |
1 |
|
CLSFP-G25CL1DI( 1291) |
6w, 25G, 10Km, 1291nm |
1 |
|
CLSFP-G25CL1DI( 1311) |
6w, 25G, 10Km, 1311nm |
1 |
|
CLSFP-G25CL1D( 1331) |
6w, 25G, 10Km, 1331nm |
1 |
|
CLSFP-G25CL1D( 1351) |
6w, 25G, 10Km, 1351nm |
1 |
|
CLSFP-G25CL1D( 1371) |
6w, 25G, 10Km, 1371nm |
1 |
|
CWDM / 12 waves / 10G / 10Km |
||
|
Model |
Description |
Quantity |
|
CLSFP-XGCLRDI( 1271) |
12w, 10G, 10Km, 1271nm |
1 |
|
CLSFP-XGCLRDI( 1291) |
12w, 10G, 10Km, 1291nm |
1 |
|
CLSFP-XGCLRDI( 1311) |
12w, 10G, 10Km, 1311nm |
1 |
|
CLSFP-XGCLRD( 1331) |
12w, 10G, 10Km, 1331nm |
1 |
|
CLSFP-XGCLRD( 1351) |
12w, 10G, 10Km, 1351nm |
1 |
|
CLSFP-XGCLRD( 1371) |
12w, 10G, 10Km, 1371nm |
1 |
|
CLSFP-XGCLRDI( 1391) |
12w, 10G, 10Km, 1391nm |
1 |
|
CLSFP-XGCLRDI( 1411) |
12w, 10G, 10Km, 1411nm |
1 |
|
CLSFP-XGCLRDI( 1431) |
12w, 10G, 10Km, 1431nm |
1 |
|
CLSFP-XGCLRD( 1451) |
12w, 10G, 10Km, 1451nm |
1 |
|
CLSFP-XGCLRD( 1471) |
12w, 10G, 10Km, 1471nm |
1 |
|
CLSFP-XGCLRD( 1491) |
12w, 10G, 10Km, 1491nm |
1 |
|
CWDM / 12 waves / 10G / 20Km |
||
|
Model |
Description |
Quantity |
|
CLSFP-XGCLRDIA( 1271) |
12w, 10G, 20Km, 1271nm |
1 |
|
CLSFP-XGCLRDIA( 1291) |
12w, 10G, 20Km, 1291nm |
1 |
|
CLSFP-XGCLRDIA( 1311) |
12w, 10G, 20Km, 1311nm |
1 |
|
CLSFP-XGCLRDIA( 1331) |
12w, 10G, 20Km, 1331nm |
1 |
|
CLSFP-XGCLRDIA( 1351) |
12w, 10G, 20Km, 1351nm |
1 |
|
CLSFP-XGCLRDIA( 1371) |
12w, 10G, 20Km, 1371nm |
1 |
|
CLSFP-XGCLRDIA( 1391) |
12w, 10G, 20Km, 1391nm |
1 |
|
CLSFP-XGCLRDIA( 1411) |
12w, 10G, 20Km, 1411nm |
1 |
|
CLSFP-XGCLRDIA( 1431) |
12w, 10G, 20Km, 1431nm |
1 |
|
CLSFP-XGCLRDIA( 1451) |
12w, 10G, 20Km, 1451nm |
1 |
|
CLSFP-XGCLRDIA( 1471) |
12w, 10G, 20Km, 1471nm |
1 |
|
CLSFP-XGCLRDIA( 1491) |
12w, 10G, 20Km, 1491nm |
1 |
