Product Overview
GPON/EPON gateway, as the core interconnection equipment of enterprise network, supports functions of routing exchange, security management, etc., and integrates the functions of "optical modem + routing + fixed line + unified communication application". Through a fiber to achieve the business issued automatically, meet the communications, office, entertainment and other information needs of the enterprise

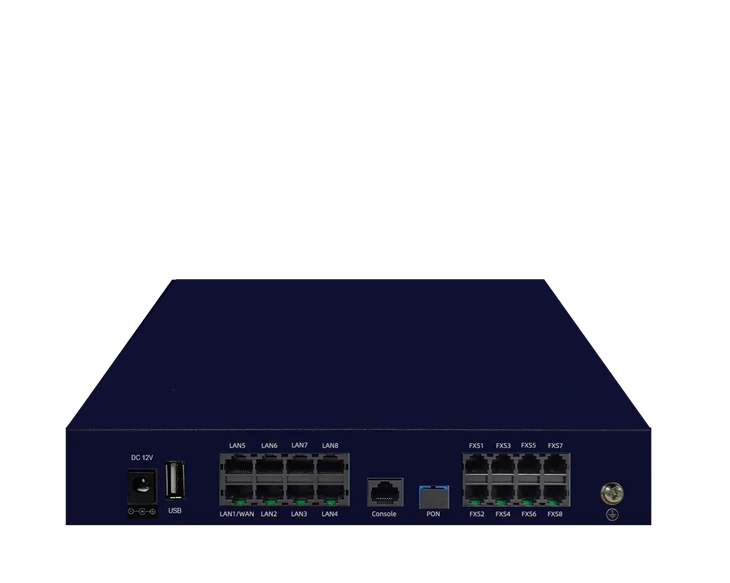

Product Hardware
|
Name |
OfficeTen1800-G4S4 |
SDG1800M-U-G4S8 |
OfficeTen1800-G8S8 |
SDG1800M-U |
|
Dimension (L*W*H) |
212*148*26mm |
222*149*43.5mm |
234*179*43.5mm |
440*210*43.5mm |
|
Uplink port |
1EPON/GPON adaptive |
1EPON/GPON adaptive |
1EPON/GPON adaptive |
1EPON/GPON adaptive |
|
Downlink port |
1WAN+3LAN |
1WAN+3LAN |
1WAN+7LAN |
1WAN+3LAN |
|
USB |
1 USB |
1 USB |
1 USB |
1 USB |
|
WLAN |
IEEE 802.11b/g/n and Mixed Working mode |
IEEE 802.11b/g/n and Mixed Working mode |
IEEE 802.11b/g/n and Mixed Working mode |
IEEE 802.11b/g/n and Mixed Working mode |
|
FXS |
4 |
8 |
8 |
16 |
|
Power |
12V/1.5A |
12V/1.5A |
12V/2A |
110V-240V |
|
Power consumption |
12W |
15W |
22W |
35W |
|
Enclosure |
Metal material |
|||
|
Reliability |
7×24 hours,MTBF > 50000 hours |
|||
|
Temperature and humidity |
-5℃～55℃ |
|||
|
Work pressure |
86KPa~106KPa |
|||
Production feature
High speed broadband access： Optical fiber access, support uPON (GPON, EPON automatic adaptation), support multiple Gigabit Ethernet ports, WAN/LAN switching
Integration of basic functions：Integrate data, routing, wireless, VPN, VXLAN, firewall, voice and other functions
Multiple voice protocols：Support voice access of IMS/NGN network , IETF SIP and ITU-T H.248 protocol
Flexible wireless access：Support IEEE802.11b/g/n, 300Mbps wireless connection speed
Easy to manage and maintain：Support the business issued automatically, local WEB management, and SNMP/TR069 remote network management.
Cloud network unified terminal：Support to be used as uCPE node for cloud network communication, supports enterprise cloud business access by IPSec VPN and VxLAN
Software function
Uplink access：
◆ PON：built-in PON modules,support adaptive GPON, EPON, compatible with OLT equipment from the mainstream manufacturers such as huawei, zte, Fiberhome
◆ GE：Support Gigabit Ethernet access,
Basic function：
◆ Data exchange: support basic function such as bridge, routing, and mixed mode, support DHCP Server, DNS, NAT, routing, EoIP, NTP, VLAN,and multicast,etc.
◆ Work mode：support WAN multiple services, PPPoE, DHCP access and static IP access
Relevant features：
◆ IPv4/IPv6：Support IPv4 / IPv6 double stack, address management, data forwarding and DNS.
◆ WiFI：Supports IEEE 802.11 b/g/n (2.4 g) and Mixed mode, multiple SSID, intelligent adjustment of wireless rate and wireless transmission power
◆ QoS：Supports the speed limit based on VLAN, IP address segment, port and protocol; supports 802.1p and DSCP labeling for traffic; supports traffic priority to ensure the bandwidth of key services
Voice function：
◆ Voice：support SIP, H.248 protocols, IAD function,and simultaneous concurrency on all ports
◆ Audio codec：G711a/u,G.729,G.723,G.722.etc
◆ Fax：T30,T38
Safety management：
◆ Firewall: supports state detection, ACL access control based on IP address, port, protocol and time period, content filtering and Intranet ARP attack prevention
◆ VPN：Support L2TP VPN,IPSec VPN,PPTP VPN,VXLAN
◆ Local management : Support local Web management
◆ Network management：Support SNMP, TR069, SYSLOG remote network management

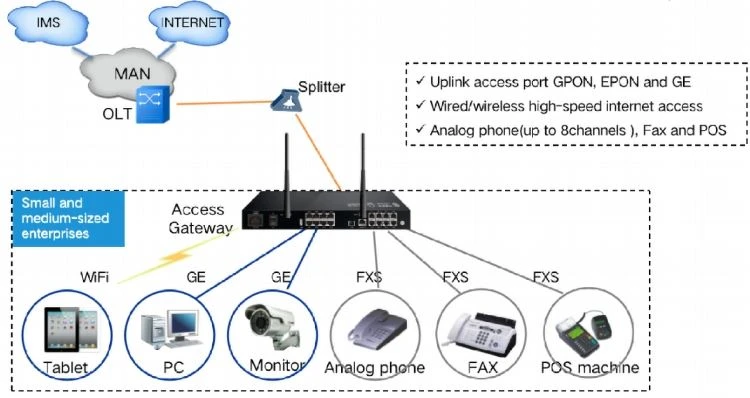

Product Application
Applicable scenario:
Small and medium-sized enterprises with 5-50 PC access the Internet at the same time and 4-16 telephone demands
GPON/EPON gateway is deployed in the enterprise side, suitable for small and medium-sized enterprises, commercial buildings, science and technology parks, chain stores, enterprise branches, and street shops and other users, to meet the enterprise special line business, such as data, voice, and video, at the same time provides the basic conditions for enterprises on the cloud business.
