Product Overview
GPON/EPON gateway, as the core interconnection equipment of enterprise network, supports functions of routing exchange, security management, etc., and integrates the functions of "optical modem + routing + fixed line + unified communication application". Through a fiber to achieve the business issued automatically, meet the communications, office, entertainment and other information needs of the enterprise

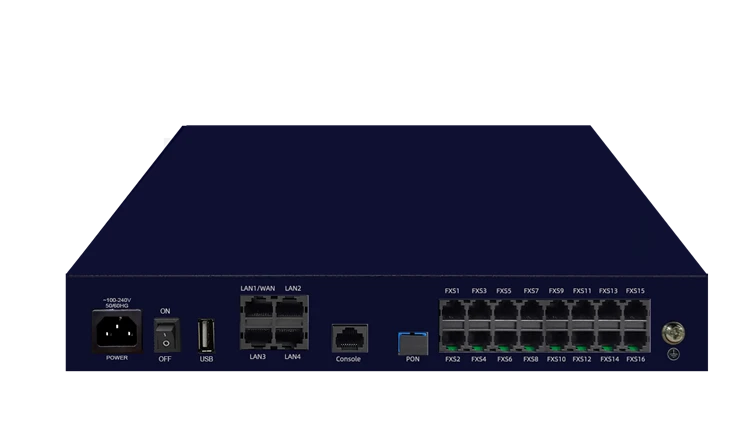

Product Hardware
|
Name |
OfficeTen1800-G4S4 |
SDG1800M-U-G4S8 |
OfficeTen1800-G8S8 |
SDG1800M-U |
|
Dimension (L*W*H) |
212*148*26mm |
222*149*43.5mm |
234*179*43.5mm |
440*210*43.5mm |
|
Uplink port |
1EPON/GPON adaptive |
1EPON/GPON adaptive |
1EPON/GPON adaptive |
1EPON/GPON adaptive |
|
Downlink port |
1WAN+3LAN |
1WAN+3LAN |
1WAN+7LAN |
1WAN+3LAN |
|
USB |
1 USB |
1 USB |
1 USB |
1 USB |
|
WLAN |
IEEE 802.11b/g/n and Mixed Working mode |
IEEE 802.11b/g/n and Mixed Working mode |
IEEE 802.11b/g/n and Mixed Working mode |
IEEE 802.11b/g/n and Mixed Working mode |
|
FXS |
4 |
8 |
8 |
16 |
|
Power |
12V/1.5A |
12V/1.5A |
12V/2A |
110V-240V |
|
Power consumption |
12W |
15W |
22W |
35W |
|
Enclosure |
Metal material |
|||
|
Reliability |
7×24 hours,MTBF > 50000 hours |
|||
|
Temperature and humidity |
-5℃～55℃ |
|||
|
Work pressure |
86KPa~106KPa |
|||
Production feature
High speed broadband access： Optical fiber access, support uPON (GPON, EPON automatic adaptation), support multiple Gigabit Ethernet ports, WAN/LAN switching
Integration of basic functions：Integrate data, routing, wireless, VPN, VXLAN, firewall, voice and other functions
Multiple voice protocols：Support voice access of IMS/NGN network , IETF SIP and ITU-T H.248 protocol
Flexible wireless access：Support IEEE802.11b/g/n, 300Mbps wireless connection speed.
Easy to manage and maintain：Support the business issued automatically, local WEB management, and SNMP/TR069 remote network management.
Cloud network unified terminal：Support to be used as uCPE node for cloud network communication, supports enterprise cloud business access by IPSec VPN and VxLAN
Software function
Uplink access：
◆ PON：built-in PON modules,support adaptive GPON, EPON, compatible with OLT equipment from the mainstream manufacturers such as huawei, zte, Fiberhome
◆ GE：Support Gigabit Ethernet access,
◆ Basic function：
◆ Data exchange: support basic function such as bridge, routing, and mixed mode, support DHCP Server, DNS, NAT, routing, EoIP, NTP, VLAN,and multicast,etc.
◆ Work mode：support WAN multiple services, PPPoE, DHCP access and static IP access
Relevant features：
◆ IPv4/IPv6：Support IPv4 / IPv6 double stack, address management, data forwarding and DNS.
◆ WiFI：Supports IEEE 802.11 b/g/n (2.4 g) and Mixed mode, multiple SSID, intelligent adjustment of wireless rate and wireless transmission power
◆ QoS：Supports the speed limit based on VLAN, IP address segment, port and protocol; supports 802.1p and DSCP labeling for traffic; supports traffic priority to ensure the bandwidth of key services
Voice function：
◆ Voice：support SIP, H.248 protocols, IAD function,and simultaneous concurrency on all ports
◆ Audio codec：G711a/u,G.729,G.723,G.722.etc
◆ Fax：T30,T38
Safety management：
◆ Firewall: supports state detection, ACL access control based on IP address, port, protocol and time period, content filtering and Intranet ARP attack prevention
◆ VPN：Support L2TP VPN,IPSec VPN,PPTP VPN,VXLAN
◆ Local management : Support local Web management
◆ Network management：Support SNMP, TR069, SYSLOG remote network management

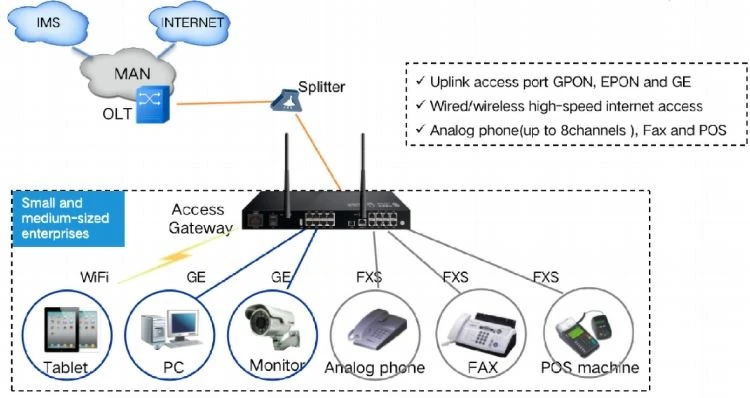

Product Application
Applicable scenario:
Small and medium-sized enterprises with 5-50 PC access the Internet at the same time and 4-16 telephone demands
GPON/EPON gateway is deployed in the enterprise side, suitable for small and medium-sized enterprises, commercial buildings, science and technology parks, chain stores, enterprise branches, and street shops and other users, to meet the enterprise special line business, such as data, voice, and video, at the same time provides the basic conditions for enterprises on the cloud business.
FAQ
Shipping Method:
For small qtty will be shipped by courier door to door e.g: DHL, UPS, EMS, FEDEX IE, FEDEX IP, TNT ( shipping days 3-4 days)
For bigger qtty will be shipped by sea shipment to your pointed nearest seaport ( shipping days 1 month)
Why choose us?
1. Manufacturer Place your order directly to the factory, no intermediate cost, more fast delivery ,better service and economical cost.
2. Strict QC inspection Good quality is top important during cooperation. We will make QC inspection strictly before ship out to make sure every piece stayed in a good condition. If any problems made by us after you received cases then we will full responsible to compensate you.
3. Stable Supply As a manufacturer with strong ability for phone cases production, we have enough stock to meet your needs.
4. Fast delivery Enough stock in the warehouse, normal order can be delivery in 1-2 days.
5. Professional sale team with the best after-service professional and experienced sales team will provide you excellent service.
How to place your order:
1. Send us your order list (models/quantities/specification)
2. we will send you PROFORMA INVOICE (PI) with shipping cost and Payment information for your confirmation.
3. You arrange payment after you confirmed proforma invoice, we will arrange production after received your payment notice.
Specific delivery date depends on your specific needs, normally delivery in 1-3 days.
4.We will arrange delivery after your payment arrived and goods ready,and at the same time we will tell you goods tracking number so that you could know your goods condition by this number from courier site.
5.You will receive your order in about 3-5 days after goods ship out.
OEM/ODM Service
Our professional R&D dept. can develop different products for different target prices and different requirements.
Free sample service
Samples can not be free.
Direct factory, Competitive price
We are manufacturer.Factory price, various products we can source for you.
Quality control
We have a strict quality control system, Professional QC team.
Custom packaging service
No matter the inner packing or the outer carton.
We can design as your request.
Quick response
All requests will be reply within 12 hours.
How long i can get the feedback after we sent the enquiry?
We will reply you within 12 hours in working day.
Can you do our design?
Of course, your customized design (OEM) is available.
Can you make our design for the package?
Yes, please send us the design you need ,we will value the price and make the exact same package basing on your design.
What's the universal lead-time for order delivery?
Small production: 7-15days or basing on your qty.
What kind of shipping do you have?
DHL,FEDEX,UPS,EMS,TNT,etc.
What can you get from us?
Excellent products (unique design, advance printing machine,strict quality control ) Factory direct sale (favorable and competitive price) Great service(OEM,ODM, after-sales services, fast delivery) Professional business consultation.
Hot Tags: 4GE+16FXS GPON Enterprise Gateway, China, manufacturers, customized, price, cheap, for sale, gpon mdu with wi fi function, scalable gpon mdu, gpon mdu for broadband access, gpon mdu for video conferencing, gpon mdu for hospital network, gpon mdu for office network
