■ Directional couplers are mainly used as a measuring device to monitor the coupling out signals. The coupling value is from 3 dB to 60 dB or more.
■ Applied to the network sites for corresponding signal strength and also as a signal power monitoring device. They are the key components in the in-building systems.
■ Meet various of network systems demands with the Ultra-wideband design, mainly used in the mobile communication and broadcast systems.
Feature
●Low Insertion Loss
●High power handing
●Small size, Low weight
●N-Female connecters
Specification

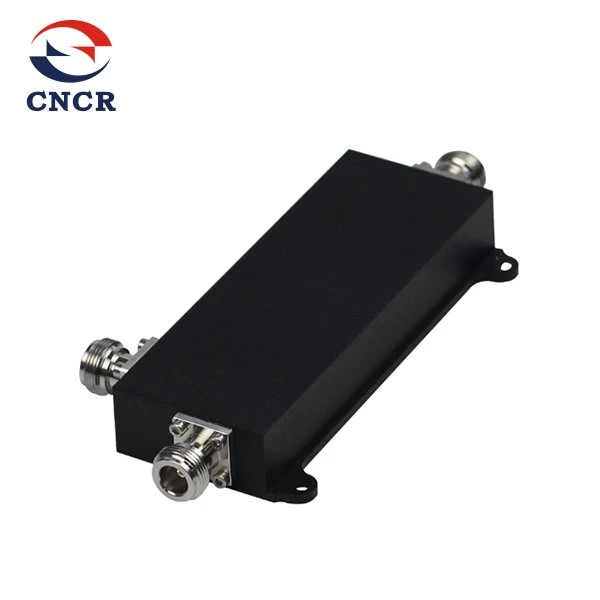

Part number | ZHCP-2610N-2U1A |
Coupling(dB) | 10 |
Frequency (MHz) | 2000-6000 |
Insertion Loss(dB) | 0.3(not include coupling loss) |
Ripple in band(dB) | ＜±1 |
Directivity(dB) | ≥20 |
VSWR | ≤1.2 |
Impedance(Ω) | 50 |
PIM3(dBc)* | ≤-150@+43dBm×2 |
Connectors | N-F |
Power rating(W) | 200 |
Temperature(℃) | -30~+70 |
Application | indoor |
