■ Directional couplers are used as a measuring device to monitor the coupling out signals. The coupling value is from 3 dB to 60 dB or more.
■ Applied to the network sites demanding for corresponding signal strength and also as a signal power monitoring device.
Feature
■ Low Variation of Coupling Attenuation,
■ High directivity/ Isolation, Low VSWR/Insertion Loss,
■ Broad Band Operating Frequency Range,
Specification

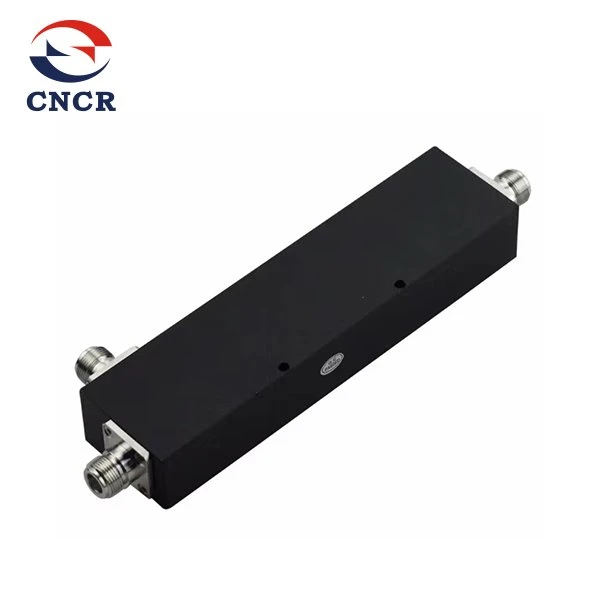

Part number | ZHCP-2615N-2U1A |
Coupling(dB) | 15 |
Frequency (MHz) | 2000-6000 |
Insertion Loss(dB) | 0.3(not include coupling loss) |
Ripple in band(dB) | ≤±1. |
Directivity(dB) | ≥20 |
VSWR | ≤1.2 |
Impedance(Ω) | 50 |
PIM3(dBc)* | ≤-150@+43dBm×2 |
Connectors | N-F |
Power rating(W) | 200 |
Temperature(℃) | -30~+70 |
Application | indoor |
Why choose us
CNCR GROUP
Public company
STOCK CODE 300250
There are 4 subsidiaries

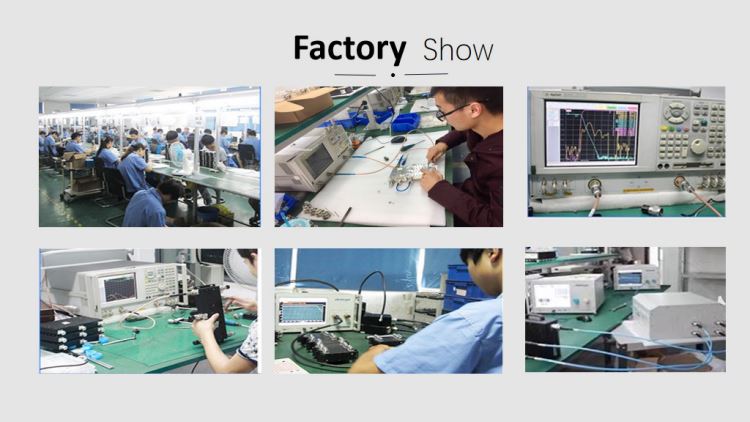

QUALITY ASSURANCE
