Feature
1. Multiple-Band Frequency
2. Low Specified PIM
3. High Rejection,Low VSWR and Insertion Loss
4. High Power
5. Economic price
Specification

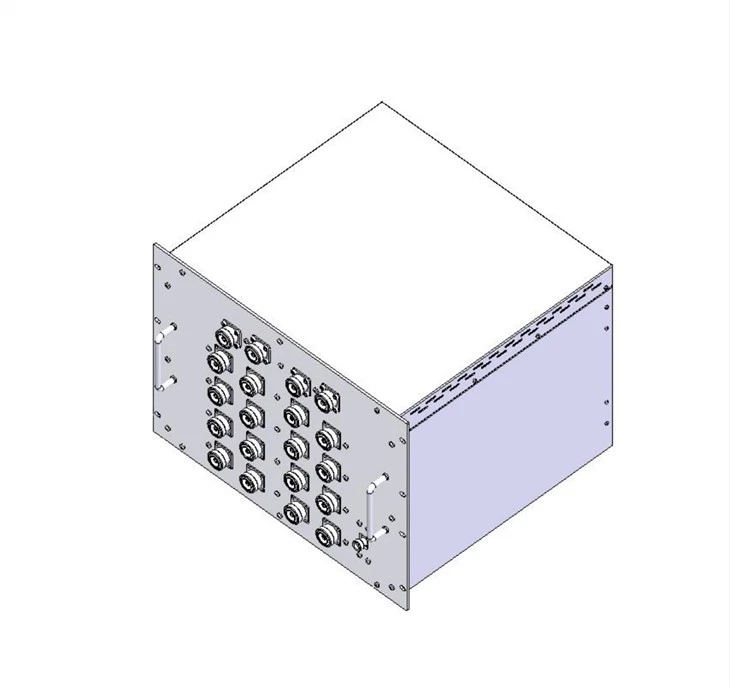

Part number | ZHPOI-16I4OD-5U1A |
Qty of in &out port | 16In 4Out |
Frequency Range (MHz)
| 703-803(4X) 880-960(4X) 1710-1880(4X) 1920-2170(4X) |
Isolation between Same System (dB) | >25 |
Isolation Between System (dB) | >80 |
Insertion Loss (dB) | <8.0 |
VSWR | <1.3 |
RF Connectors | DIN-F |
Impedance (Ω) | 50 |
PIM3(dBc)@ 2X20W | -150 |
Input Power (W) /port | 200 |
Temperature (℃) | -20 to +60 |
Humidity | 5% to 90% |
Size (mm) | 19inch chassis |
Application Scenarios
