■ In order to avoid interference, POI is divided into two platforms, which transmit the uplink and downlink signals separately.POI serves as a bridge connecting the wireless communication donor signal and the distributed coverage signal (leakage cable and antenna array, etc.).
■ Mainly used for subway, exhibition center, exhibition hall, airport and other large buildings indoor coverage.In this system, the frequency combiner and bridge combiner are used to combine the mobile signals of multiple operators and various systems, and then the antenna feed distribution system is introduced to make full use of the resources and save the investment.
Feature
◆ Multi-system Signals Transmission,
◆ low Intermodulation Value,
◆ low Insertion, High Isolation,
◆ Custom Designs Available,
Specification
Part number | ZHPOI-2I2ON-2U1B | ZHPOI-3I2O-2U1B |
Qty of in &out port | 2In 2Out | 3In 2Out |
Frequency Range (MHz)
| 351-356/361-366MHz(2X) | 87-108 350-370 410-425 |
Isolation between Same System (dB) | >50 | N/A |
Isolation Between System (dB) | >60 | ＞70 |
Insertion Loss (dB) | ≤5.0 | ≤5 |
VSWR | <1.3 | ＜1.3 |
RF Connectors | N-F | N-F |
Impedance (Ω) | 50 | 50 |
Input Power (W) /port | 100 | 50 |
Temperature (℃) | -20 to +60 | -20 to +60 |
Humidity | 5% to 90% | 5% to 90% |
Size (mm) | 19 inch chassis | 19inch chassis |
Why choose us
QUALITY ASSURANCE
◆ Professional test equipment,
◆ Professional production line,
◆ Professional quality management system
◆ Professional engineers guide installation
◆ Provide one year warranty
ADVANTAGE
We have our own R&D center, workshop and the rich experience technical support team.
We specialize in custom-designed products and high-tech requirements product with the competitive price, good quality and service after-sales
SERIVICE
Leading RF technology and product developer
Leading provider of wireless network coverage products and solutions
In addition to products, we can also help customers design IBS solutions.

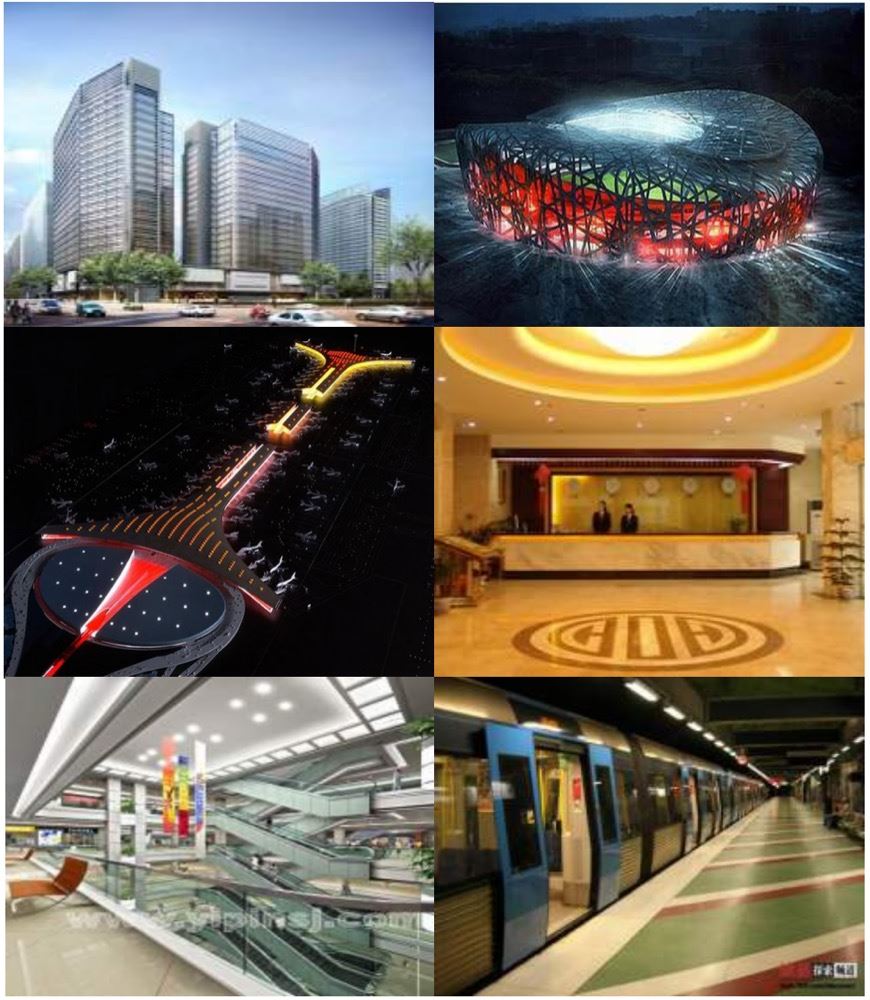

Application Scenarios
Airport, Railway station, Shopping mall, Stadium, Office building, Hospital, Subway, University, etc.
