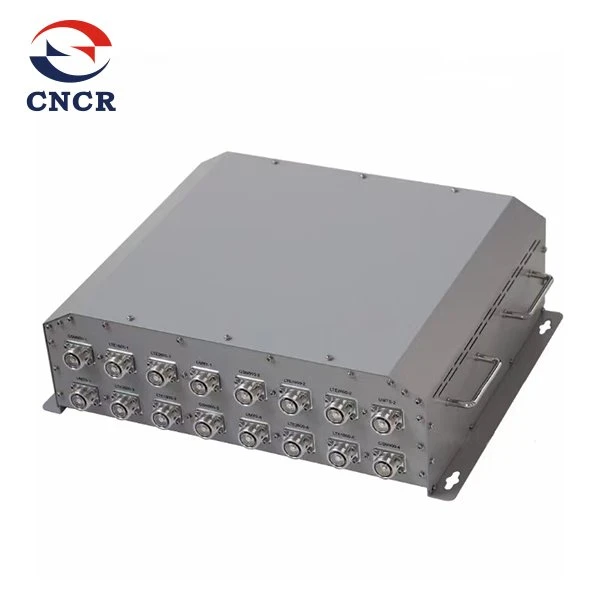

■ POI is used to combine more channels from mobile communication base stations of several operators and networks in the multiple use of outdoor antenna systems and for in-house coverage
■ POI is used to combine more than three mobile communication channels, thus allowing several service providers to jointly use more antenna feeder cables.
Feature
◆ Multi-system Signals Transmission,
◆ low Intermodulation Value,
◆ low Insertion, High Isolation,
◆ Compact Design with 19” Technology,
◆ Cost-efficiency and Modular Design,
◆ High Reliability, Cabinets or Racks,
◆ RoHS Compliant,
◆ N , DIN 4.3-10 Connectors,
◆ Custom Designs Available,
SPECIFICATION
Part number | ZHPOI-16I4O-5U1A |
Qty of in &out port | 16In 4Out |
Frequency Range (MHz)
| 800-960(4X) 1710-1880(4X) 1920-2170(4X) 2300-2700(4X) |
Isolation between Same System (dB) | >25 |
Isolation Between System (dB) | >80 |
Insertion Loss (dB) | ≤8.0 |
VSWR | <1.3 |
RF Connectors | DIN-F |
Impedance (Ω) | 50 |
PIM3(dBc)@ 2X20W | -150 |
Input Power (W) /port | 200 |
Temperature (℃) | -20 to +60 |
Humidity | 5% to 90% |
Size (mm) | 19 inch chassis |
