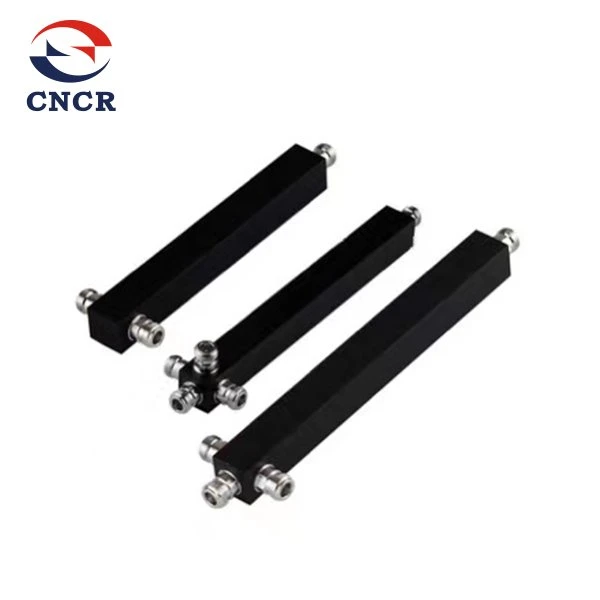

■ Power splitter is a device that divides one input signal energy into two or multiple outputs of equal or unequal energy. It can also be used as a combiner to combine multiple input signals into one output.A degree of isolation between the output ports of a power splitter should be guaranteed.The power splitter is usually divided into two points according to the output (one input two outputs), three points (one input three outputs) and so on.
Feature
● Multiple-Band Frequency Ranges
● 500 Watt Power Rating
● High Reliability
● N-Female Connector
Specification
Part number | ZHSP-444904N-2U1A |
Number of outputs | 4 |
Frequency (MHz) | 4400-4900 |
Insertion loss (dB) | ≤6.5 |
VSWR at input | ＜1.3@all ports |
Isolation(dB) | >22 |
PIM3 (dBc) * | ≤-150 @ +43dBm×2 |
Impedance (Ω) | 50 |
Average Power (W) | 200 |
Application | indoor |
Temperature (℃) | -35 to +75 |
Connectors | N-F |
