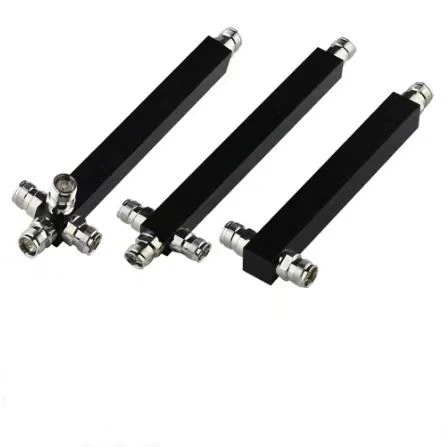

RF power splitter/dividers are RF site components/passive devices that couple a defined amount of power in a transmission line to a port, the signal allowed to be used in another circuit. 50 Ohm power dividers have many RF applications including providing a signal for test and measurement, combining feeds to and from an antenna, splitting transmitted and received signals on phone lines and many others.
Specification
Part number | ZHSP-062702N-5F1A | ZHSP-062703N-5F1A | ZHSP-062704N-5F1A |
Number of outputs | 2 | 3 | 4 |
Frequency (MHz) | 698-2700 | ||
Insertion loss (dB) | ≤3.4 | ≤5.2 | ≤6.4 |
VSWR at input | <1.2 | <1.2 | <1.3 |
PIM3 (dBc) | ≤-150 @ +43dBm×2 | ||
Impedance (Ω) | 50 | ||
Average Power (W) | 300 | ||
Peak power (kW) | 1 | ||
Application | IP65 | ||
Temperature (℃) | -35 to +75 | ||
Connectors | N-F |
