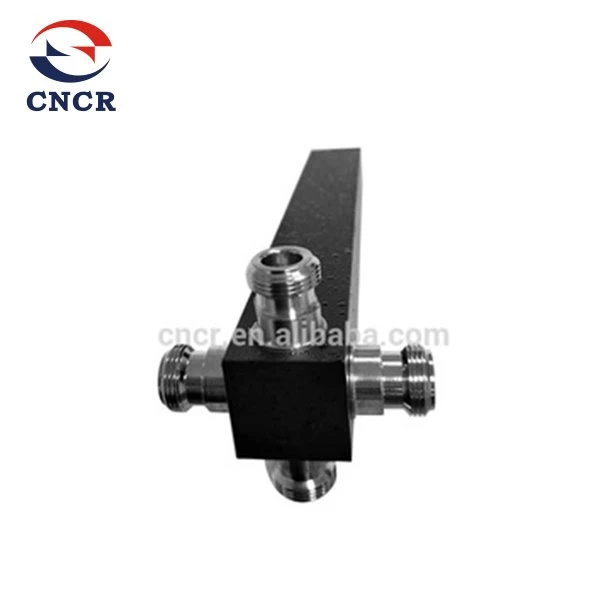

■ Power splitter is a kind of input signal energy into two channels or multiple output equal or unequal energy device.
■ According to the needs, the first signal is divided into several output channels. According to the number of allocated channels, it is defined as two power points, three power points, four power points and eight power points, which are mainly applied to the sub-system of each scene room
Feature
◆ Multiple IP Degree Conditions
◆ RoHS Compliant,
◆ N , DIN 4.3-10 connectors,
◆ Custom Designs Available,
Specification
Part number | ZHSP-343804N-2U1A |
Number of outputs | 4 |
Frequency (MHz) | 3400-3800 |
Insertion loss (dB) | ≤6.5 |
VSWR at input | ＜1.2@all ports |
Isolation(dB) | >22 |
PIM3 (dBc) * | ≤-150 @ +43dBm×2 |
Impedance (Ω) | 50 |
Average Power (W) | 200 |
Application | indoor |
Temperature (℃) | -35 to +75 |
Connectors | N-F |
Application Scenarios
