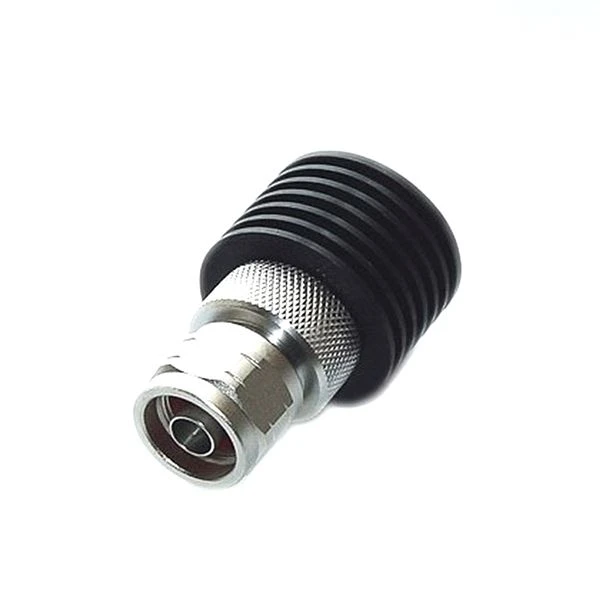

RF dummy loads also called RF termination loads, or RF terminations, it is mainly used to absorb the power of the RF or microwave system.
Termination Load / dummy load is a resistive component and indispensable components in many RF, microwave systems where signal reflection from unused ports can potentially damage the device or reduce the signal.
By using a termination load on an unused port, the incident energy will be absorbed with minimal reflection, it acts as a protector.
The termination load is commonly used to terminate devices, such as couplers, circulators and switches.
They are wide used in military and civilian communication markets, such as BS& DAS, broadcast television, mobile communication, aerospace, radar, medical equipment etc., they are also widely used in measurement systems to ensure accurate results.
Specification
Part number |
ZHLD-003005NM/F-2U1A |
Frequency Range (GHz) | DC-3 |
Average Power(W) | 5 |
Peak Power(kW) | 3 |
VSWR | ≤1.2 |
Impedance(Ω) | 50 |
Connector | N-M/F |
Temperature(℃) | -40~+65 |
Application | Outdoor |
Application Scenarios
