■ They can absorb the RF energy and transform into heat. The main factors of the maximum capacity are the size and the ambient temperature.
■ It is terminating the load port of a hybrid combiner when adding two or more RF signals.
■ Termination is used to absorb the RF power of a signal source.
Feature
◆ Powers 2W to 500W,
◆ Low VSWR,
◆ High Peak Power,
◆ Convenient Size,
◆ Low PIM Performance,
◆ Multiple IP Degree Conditions
◆ Low Cost Design, Design to Cost,
◆ RoHS Compliant,
◆ N , DIN 4.3-10 Connectors,
Custom Designs Available,
Specification

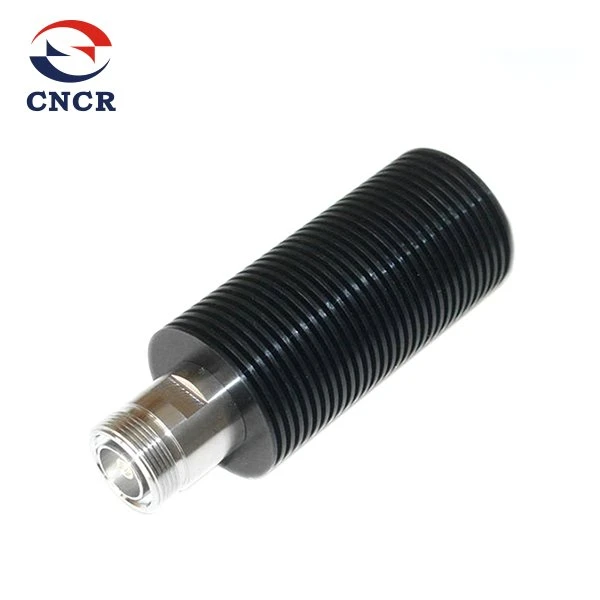

Part number | ZHLD-003050M-5U1A |
Frequency Range (MHz) | 0-3000 |
Average Power(W) | 50 |
VSWR | ≤1.2 |
PIM3(dBc)@ +43dBm×2* | <-150 |
Impedance(Ω) | 50 |
Connector | 4.3-10M |
Temperature(℃) | -40~+65 |
Application | indoor |
Application Scenarios
