■ They can absorb the RF energy and transform into heat. The main factors of the maximum capacity are the size and the ambient temperature.
■ It is terminating the load port of a hybrid combiner when adding two or more RF signals.
■ Termination is used to absorb the RF power of a signal source.
Feature
◆ Wide Frequency Band 0.698-4GHz
◆ 2G/3G/4G//5G LTE Coverage
◆ Low VSWR
◆ Widely used for In-building Solutions
◆ Application for indoor
Specification

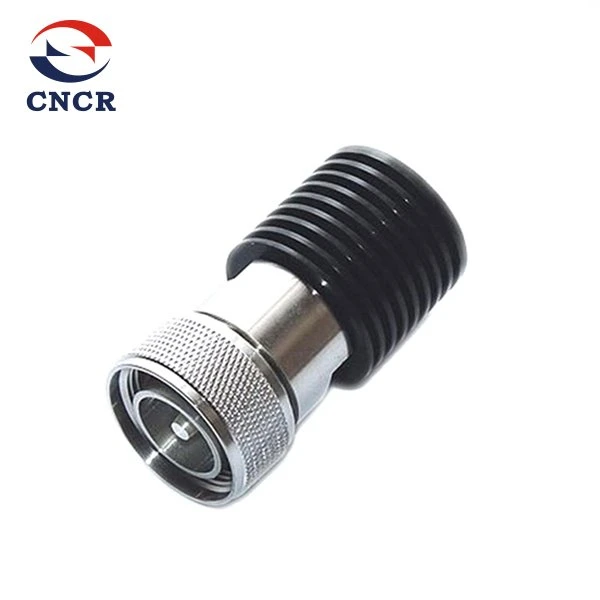

Part number | ZHLD-006060N-2U1A |
Frequency Range (MHz) | 0-6000 |
Average Power(W) | 60 |
VSWR | ≤1.3 |
PIM3(dBc)@ +43dBm×2* | <-120 |
Impedance(Ω) | 50 |
Connector | N-F |
Temperature(℃) | -40~+65 |
Application | indoor |
Application Scenarios
Company Profile
FAQ
Q: I don't see my designed dimensions/packaging/delivery etc. Can you make a special order for us?
A: Sure. We're truly customized. You're free to tell us whatever you want.
Q: Do you deal with urgent orders?
A: Sure. Please contact ASAP for details.
Q: I bought from you once. Can I have a special offer this time?
A: Contact for details. We do value our customers; we can and will offer you good price. :)
Q: How the product pricing and how to consult prices?
A:We pricing the products according to the customers' choice on materials,printing,and other process flow and so on. And you can inquiry by TM,skype or send e-mail to us.
Q :How many days will samples be finished? And how about the mass production?
A: Sample leadtime: usually need 7-10days. Mass production leadtime usually need 30 days
If you are the urgent order,we can delivery about 20 days.The actual situation is different for different products
Q:If the products have some quality problem,how will you deal with it?
A: Each step of production and finished products will be inspected by QC department before shipping.If the quality problem of products caused by us, we will provide a replacement service.
Q:Could you provide samples for test?
A: Yes, we provide our customers with samples , but it is not free
Q:How to make payment?
A:T/T,L/C, we also accept most other convenient methods of payment.
