Specification

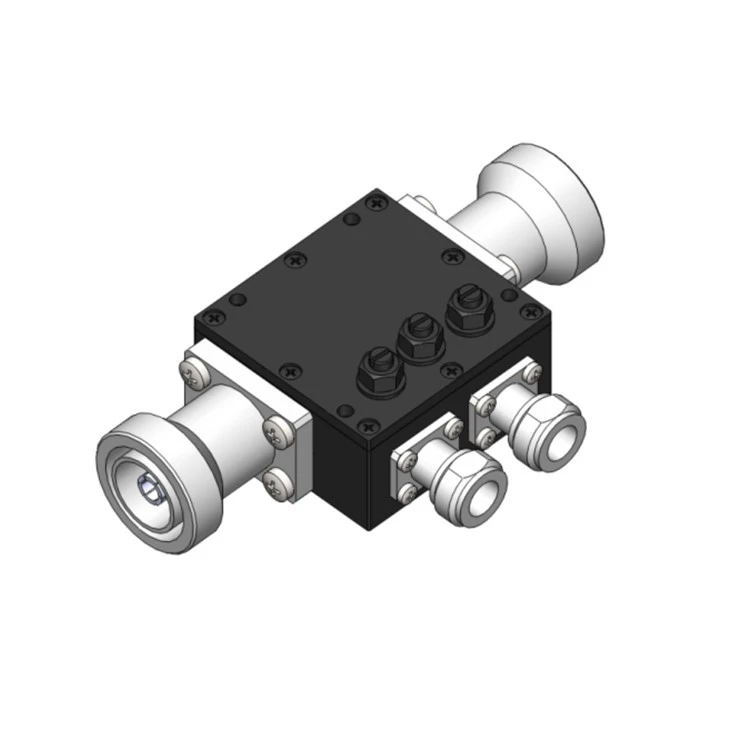

Part number | ZHCP-2610N-2U1A |
Coupling(dB) | 10 |
Frequency (MHz) | 2000-6000 |
Insertion Loss(dB) | 0.3(not include coupling loss) |
Ripple in band(dB) | ＜±1 |
Directivity(dB) | ≥20 |
VSWR | ≤1.2 |
Impedance(Ω) | 50 |
PIM3(dBc)* | ≤-150@+43dBm×2 |
Connectors | N-F |
Power rating(W) | 200 |
Temperature(℃) | -30~+70 |
Application | indoor |
What we could offer to you
Power splitter, Directional coupler, Hybrid coupler, Coaxial termination, attenuators,
Filter, Combiner, Diplexer, Triplexer,POI and so on.
What’s our advantage
We have our own R&D center, workshop and the rich experience technical support team.
We specialize in custom-designed products and high-tech requirements product with the competitive price, good quality and service after-sales
Application Scenarios
Company Profile
FAQ
1.Can i get a free sample firstly?
Very sorry the free sample is not available.
2.What is your MOQ?
No MOQ for any sample test, but 100pcs after sample order.
3. For Trade Terms,such as payment and leadtime.
·Payment Terms:T/T 100% in advance,Paypal and credit card for the sample order
·Price Terms:FOB any port in China
·Internal Express: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent
·Leadtime: Sample order,3-5work days; Bulk order 20-30work days(after your payment )
4.How about the Warranty?
1 year
For more information, please feel free to contact with us !
