■ Don't confuse the word diplexer with duplexer, which is the three-port network that permits a transmitter and receiver to use the same antenna, at essentially the same frequency. Duplexers are often used in radar, because the transmitter and receiver commonly share an antenna, and the returned signal doesn't vary much from the transmitted signal in frequency (just shifted slightly by the Doppler effect).
Feature
◆ High Average Power,Minimal Insertion Loss,
◆ Superior Intermodulation Properties Prevent,
◆ DIN 4.3-10 Connectors, Custom Designs Available,
SPECIFICATION

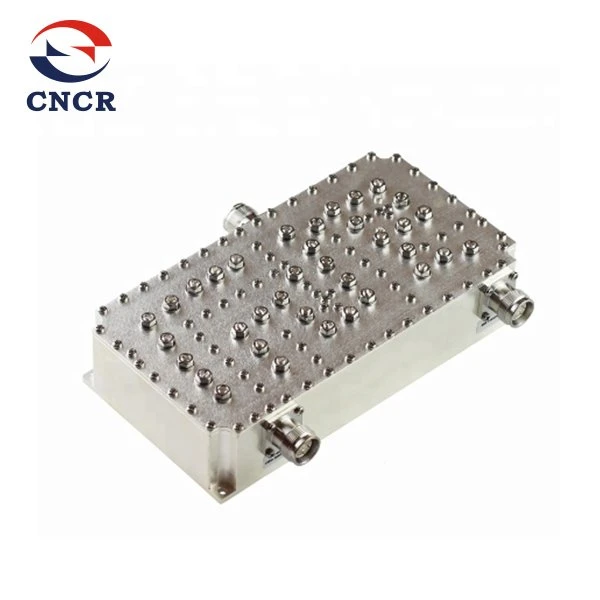

Part number | ZHDX-141403D-6U1A |
Pass band(MHz) RX Band TX Band | 1427.9-1437.9 1475.9-1485.9 |
Insertion Loss (dB) | ≤1.0 |
Ripple in-band (dB) | ≤0.8 |
Isolation (dB) | ≥90 |
Average Power (W) | 200 |
Return Loss (dB) | ≥20 |
Connectors | DIN-F |
PIM3(dBc)@ 43dBm×2 | ≤-165 |
Impedance (Ω) | 50 |
Temperature (℃) | -40 to +60 |
Application | indoor |
