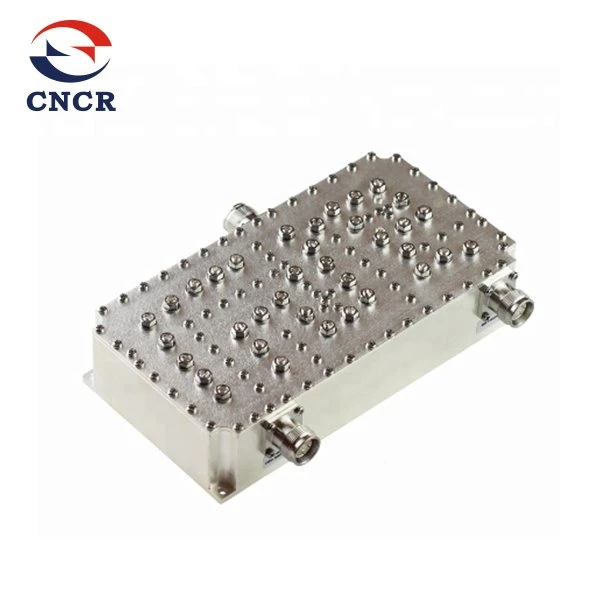

■ Duplexer is a 3 ports device most commonly used to allow a transmitter and receiver to operate on different frequencies, to share a common antenna while operating simultaneously. The filters that make up the duplexer isolate the transmitter from the receiverby doing two important functions--Function1, to filter out any transmitter noise sidebands that are being generated on the receive frequency, function 1 is the most important. Function2, to protect the receiver from transmitter carrier overload.
Feature
◆ High Average Power,Minimal Insertion Loss,
◆ Superior Intermodulation Properties Prevent,
◆ DIN Connectors, Custom Designs Available,
Specification
Part number | ZHDX-1718 03D-5U1A |
Pass band(MHz) RX Band TX Band | 1710-1785 1805-1880 |
Band Width (MHz) | 75 /75 |
Insertion Loss (dB) | ≤0.5 |
Ripple in-band (dB) | ≤0.3 |
Isolation (dB) | ≥90 |
Average Power (W) | 200 |
Return Loss (dB) | ≥20 |
Connectors | DIN-F |
PIM3(dBc) ＠ 43dBm×2 | ≤-165 |
Impedance (Ω) | 50 |
Temperature (℃) | -40 to +60 |
Application | Indoor |
