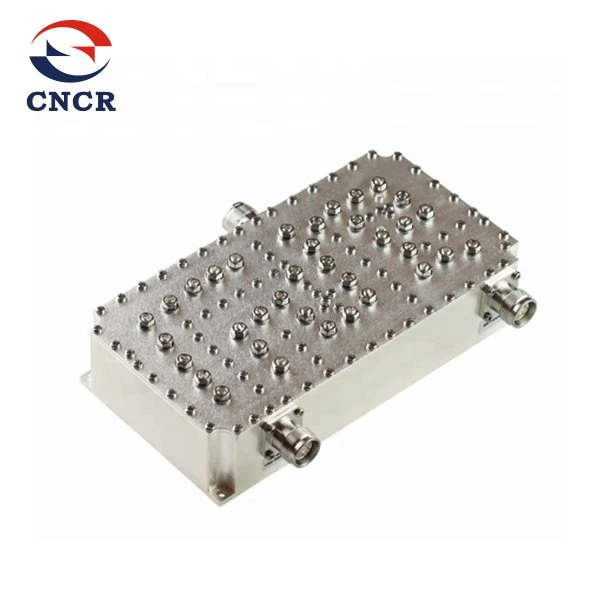

■ Duplexer is a three-port radio frequency device designed to split the antenna's transceiver signal into two different signal paths, depending on its direction.Duplexer can realize true single antenna two-way communication because the receiving and receiving signal can have the same operating frequency.Duplexer, for example, can be used for radar systems that use the same antenna but need to isolate the high-power transmitter signal from the sensitive receiver circuit.
Feature
◆ More than 50~100 dB Isolation,
◆ excellent de-coupling performance
◆ High Average Power,Minimal Insertion Loss,
◆ Superior Intermodulation Properties Prevent,
◆ DIN Connectors, Custom Designs Available,
Specification
Part number | ZHDX-192 103D-5U1 A |
Pass band(MHz) RX Band TX Band | 1920-1980 2110-2170 |
Band Width (MHz) | 60/60 |
Insertion Loss (dB) | ≤0.5 |
Ripple in-band (dB) | ≤0.3 |
Isolation (dB) | ≥90 |
Average Power (W) | 500 |
Return Loss (dB) | ≥20 |
Connectors | DIN-F |
PIM3(dBc) ＠ 43dBm×2 | ≤-165 |
Impedance (Ω) | 50 |
Temperature (℃) | -40 to +60 |
Application | Indoor |
