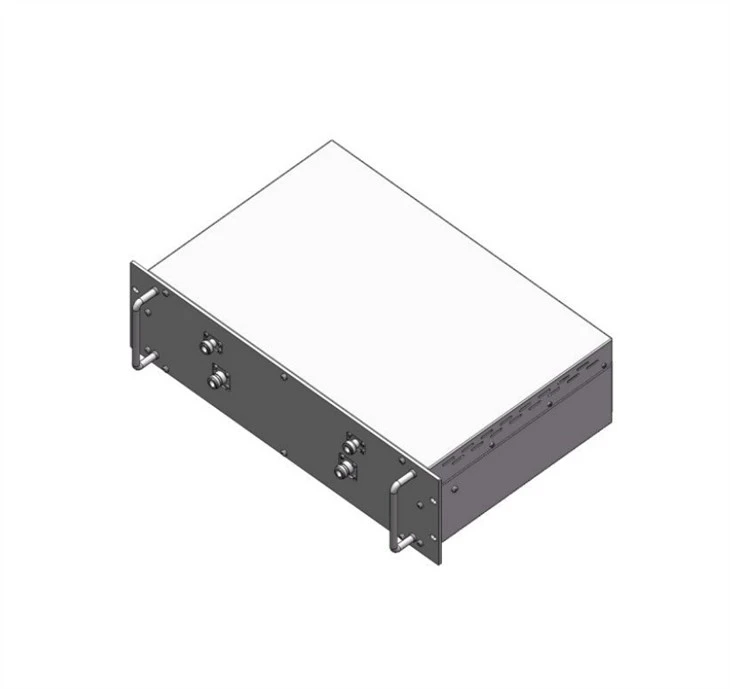

Product Specification
Part number | ZHPOI-17I4O-4U1A |
Qty of in &out port | 2In 2Out |
Frequency Range (MHz)
| 351-356(MHz) 361-366MHz(2X) |
Isolation between Same System (dB) | >50 |
Isolation Between System (dB) | >60 |
Insertion Loss (dB) | ≤5.0 |
VSWR | <1.3 |
RF Connectors | N-F |
Impedance (Ω) | 50 |
PIM3(dBc)@ 2X20W | -150 |
Input Power (W) /port | 200 |
Temperature (℃) | -20 to +60 |
Humidity | 5% to 90% |
Size (mm) | 19 inch chassis |
Application Scenarios
The most prominent features of urban subway coverage are many access systems, wide coverage, high coverage requirements and high installation environment requirements.
Using multiple network system (POI) combiner, which would share antenna feedback to do signal converge.
In the tunnel adopts fiber distribution system + leakage cable cover. Station hall, side type platform using antenna array to cover, island platform is covered by adopting the combination of leakage cable and antenna array.
