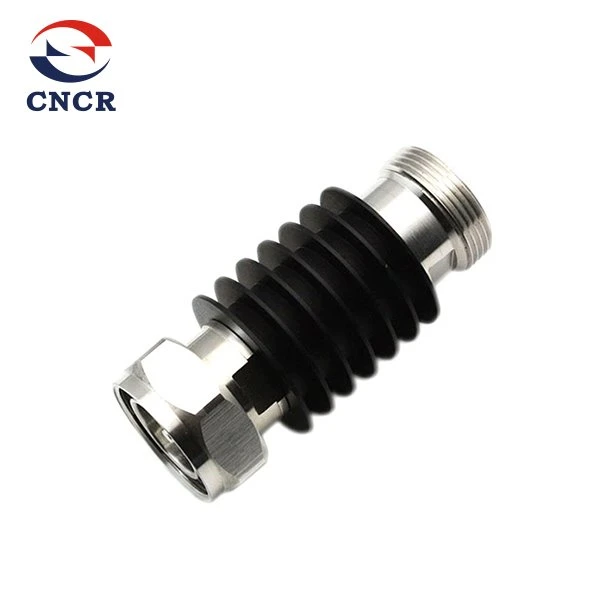

■ Attenuator is very similar to termination. but they only absorb part of the input power.
■ Attenuators can be used to reduce the RF power of a source. They are available with attenuation values of 1~60dB.
Feature
◆ Power Rating 5W to 500W, 1 dB to 60 dB,
◆ High Reliability,
◆ Low VSWR,
◆ Low PIM Performance,
◆ Multiple IP Degree Conditions,
◆ Low Cost Design, Design to Cost,
◆ RoHS Compliant,
◆ N , DIN 4.3-10 Connectors,
◆ Custom Designs Available,
Specification
Part number | ZHAT-044040DN200-5U1A | ZHAT-030520DN200-6U1A |
Frequency Range(MHz) | 450-4000 | 340-390 |
Average Power(W) | 200 | 200 |
VSWR | ≤1.2 | ≤1.2 |
Attenuating(dB) | ±2 | ±0.5 |
PIM3(dBc) | <-150@+43dBm×2 | <-160@+43dBm×2 |
Impedance (Ω) | 50 | 50 |
Connectors | DIN/N | DIN/N |
Temperature(℃) | -40~+65 | -40~+65 |
Application | indoor | indoor |
Application Scenarios
