Product Feature

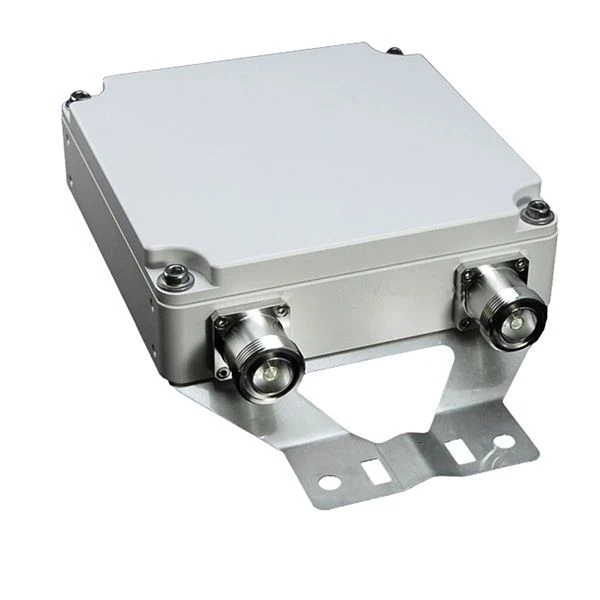

This 5G combiner is an duplexer which shares 2 frequencies
It is designed 3.5/4.5 GHz for 5G System, offer 2 output ports and 1 input port,and support waterproof function.
Product Specification
Part number | ZHCP-0304-4U1A |
Frequency Range (MHz) | 3500 ~ 3690MHz 4600 ~ 4800MHz |
Isolation Between System (dB) | >80 |
Insertion Loss (dB) | 0.5 dB max |
VSWR | <1.2 |
RF Connectors | 4.3 – 10 DIN FEMALE |
Impedance (Ω) | 50 |
Lightning Protection | 3kA Lightning Surge Current Waveform 10/350 waveform 20kA Lightning Surge Current Waveform 8/20 waveform |
Average Maximum Power(W) | 100 |
Temperature (℃) | -10 to +60 |
Humidity | 5% to 90% |
| Waterproofing Class | IP66 |
Mounting | Wall or Poll |
Company Profile
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer, having our own factories.
Q: Do you provide samples ? is it free or extra?
A: Sorry, we can not provide free samples
Q: How long is your delivery time?
A: Generally, if the goods are in stock, shipment can be arranged within 3 working days;
If the goods need to be mass produced, delivery time may be around 7-10 working days.
