■ Combiners are used to unite two or more different frequencies sharing the common antenna feed cable or one antenna by several transmitters or receivers.
■ RF Combiner/Hybrid Combiner is widely exproted to Middle East , India, North American, Australia, South American, Southeast Asia
Feature
◆ Wide Frequency Range
◆ Excellent Coupling Flatness
◆ High Directivity / Isolation
◆ Cavity structure, High power handing
◆ Low Insertion Loss, Low VSWR, Low PIM(IM3)
Specification

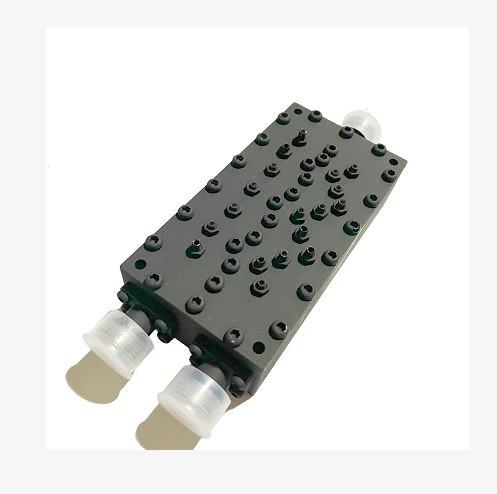

Model | ZHCM-010902NS-2U1A |
Pass band(Mhz) Low band High band | 136-869 902-928 |
Intertion Loss(dB) | ≤0.35/1.0 |
Ripple in band(dB) | ≤0.2/0.8 |
Isolation(dB) | ≥20/50 |
Average power(W) | 10 |
Return loss(dB) | ≥20 |
PIM3(dBc) | ≤-165 |
Impedance | 50 |
Connector | N-F/SMA-F |
Application | indoor |
Temperature (℃) | -40 to +60 |
