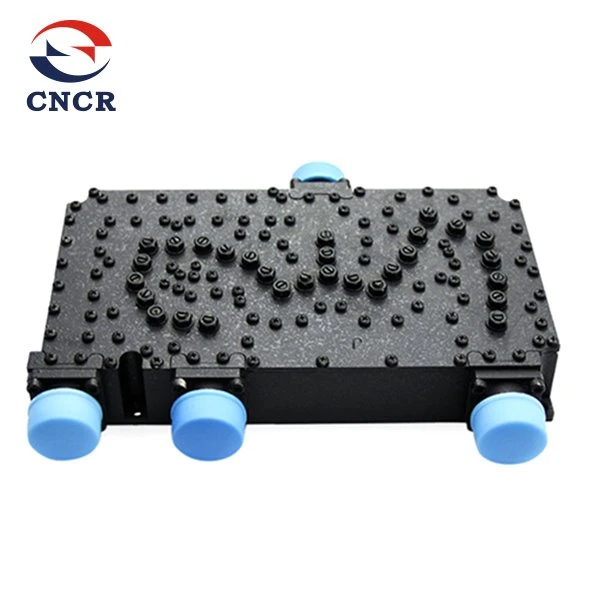

■ Combiners are used to unite two or more different frequencies, allowing them to share a common antenna feed cable or a single antenna by multiple transmitters or receivers.
■ A combiner collects all the signals from different systems and combines them into an antenna port, enabling different systems to share one set of antenna and cable equipment.
Feature
◆ High Average Power,Minimal Insertion Loss,
◆ Superior Intermodulation Properties Prevent,
◆ Brackets for Mast and Wall mounting,
Specification
|
Part number |
ZHCM-07515403NS-3U1A |
|
Product Type |
Triplexer |
|
Frequency Range(MHz) Band1 Band2 Band3 Band4 |
755-826 5145-5355 5465-5730
|
|
Insertion Loss (dB) |
≤0.5 |
|
Ripple in-band(dB) |
≤0.3 |
|
Isolation(dB) |
≥60 |
|
Return Loss(dB) |
≥20 |
|
PIM(dBc) +43 dBm x 2 |
≤-130 |
|
Impedance(Ω) |
50 |
|
Ingress protection |
Indoor |
|
Connectors |
N-F/SMA-F |
|
Power Rating(W) |
20 |
|
Temperature(℃) |
-25~+65 |
About us
Hangzhou CNCR-IT CO., LTD. (Stock Code: 300250) was established in December 1999. The company has always focused on providing simple, efficient, and easy-to-access information solutions for its customers. Its main business includes the design of information access solutions, research and development (R&D), production, and sales of related equipment. The company's primary products sold in international markets are divided into four categories: EOC, Mesh Routers, SD-WAN, and Microwave Passive Components. In the domestic market, its customers are primarily concentrated in China Mobile, China Unicom, China Telecom, broadcasting and television, as well as government and enterprise sectors.
CNCR is a high-tech enterprise and a Zhejiang provincial-level and Hangzhou city-level high-tech enterprise research and development center. In August 2011, the company went public and became the first listed company in China specializing in the manufacturing of information access equipment.
PACKING AND DELIVERY
Packing:Each piece is packed in an opp bag with a small inner box and a standard export carton.Use cushioned foam film in carton.Export carton: depends on products. Carton wrapped with film, final pallet.
Delivery:We can deliver by air, express, ship, according to customers' requirement.
Application Scenarios

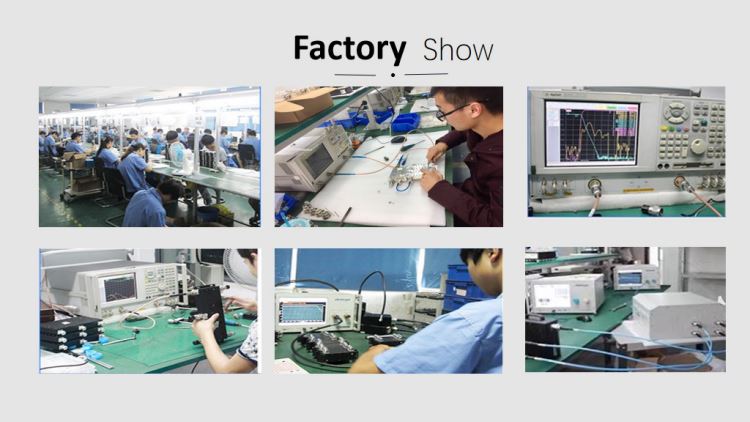

Company Profile
