The DCS RF Duplexer operates within a passband range of 1920-1980 MHz for the RX band and 2110-2170 MHz for the TX band, ensuring optimal signal integrity and reliable communication in critical environments. Additionally, we provide customized DIN connectors, catering to diverse client needs with high-quality solutions.
Feature
◆ High Average Power,Minimal Insertion Loss,
◆ Superior Intermodulation Properties Prevent,
◆ DIN Connectors, Custom Designs Available,

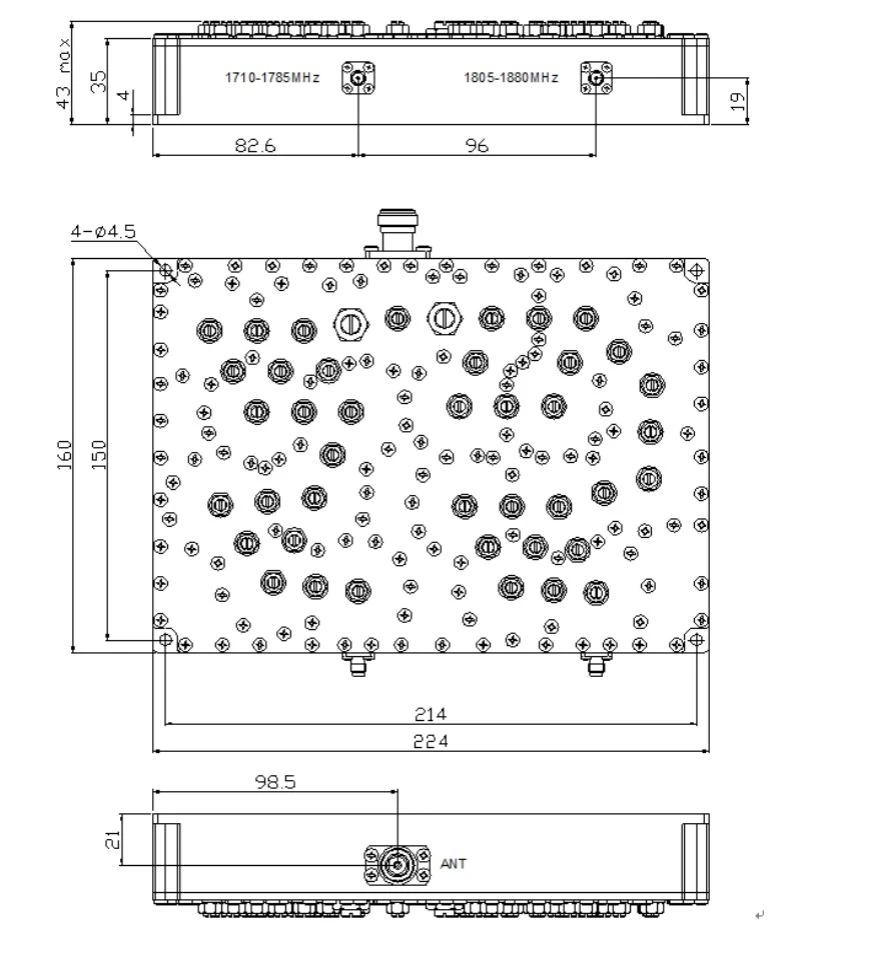

Specification
|
Part number |
ZHDX-1718 03D-5U1A |
|
Pass band(MHz) RX Band TX Band |
1710-1785 1805-1880 |
|
Band Width (MHz) |
75 /75 |
|
Insertion Loss (dB) |
≤0.5 |
|
Ripple in-band (dB) |
≤0.3 |
|
Isolation (dB) |
≥90 |
|
Average Power (W) |
200 |
|
Return Loss (dB) |
≥20 |
|
Connectors |
DIN-F |
|
PIM3(dBc) ＠ 43dBm×2 |
≤-165 |
|
Impedance (Ω) |
50 |
|
Temperature (℃) |
-40 to +60 |
|
Application |
Indoor |
Large venues such as stadiums and airports are often a high priority for operators who need to provide ubiquitous, high-capacity mobile network coverage both inside buildings and in outdoor areas. The solution always requires high scalability, sustainability, and redundancy capabilities.
CNCR's DAS solution, which combines low and high power with a modular design, supports large coverage areas with flexible multi-system and multi-carrier configurations. The system's redundancy configuration ensures consistent performance even during incidents such as power blackouts.
The solution has been extensively deployed at airports, stadiums, and large shopping complexes in Asia, the Middle East, the Americas, and other regions. High-profile projects include the 2014 Brazil soccer tournament, the 2016 Summer Games, the 2008 Beijing Summer Games, and international airports around the world.
CNCR's large venue coverage solutions include Comflex DAS, Modular POI solutions, and antennas.
