■ Duplexer is a three-port radio frequency device designed to split the antenna's transceiver signal into two different signal paths, depending on its direction.Duplexer can realize true single antenna two-way communication because the receiving and receiving signal can have the same operating frequency.Duplexer, for example, can be used for radar systems that use the same antenna but need to isolate the high-power transmitter signal from the sensitive receiver circuit.
Specification
|

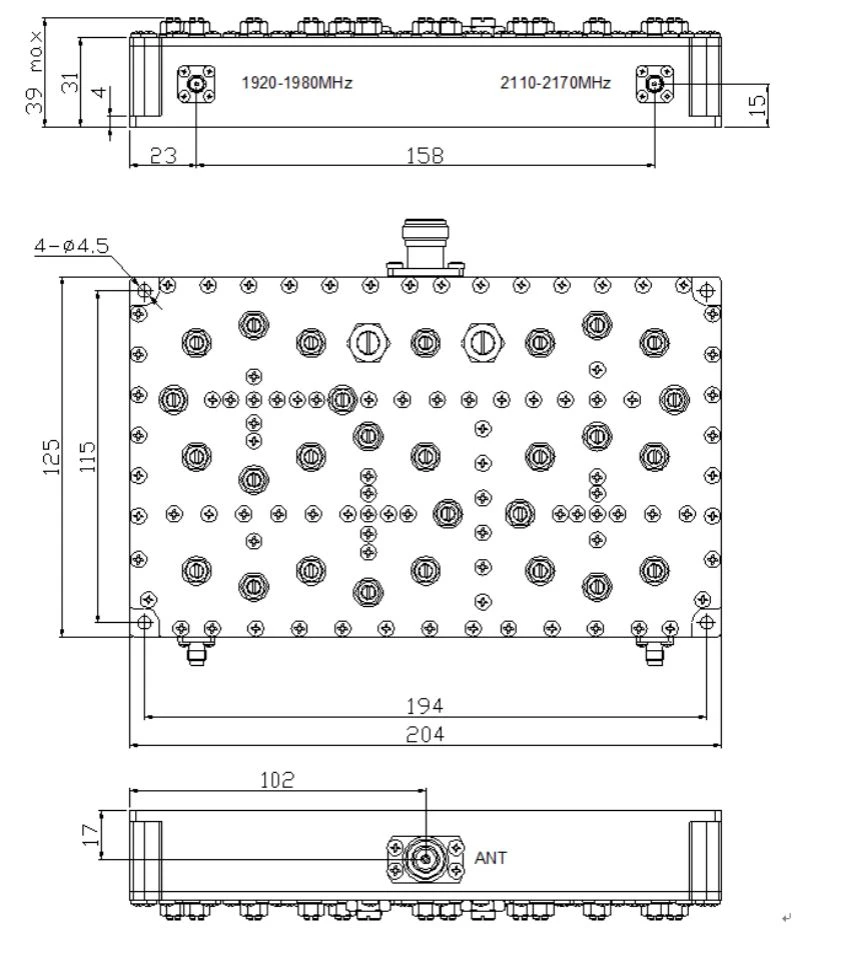

Part number |
ZHDX-192103D-5U1A |
|
Pass band(MHz) RX Band TX Band |
1920-1980 2110-2170
|
|
Band Width (MHz) |
60/60 |
|
Insertion Loss (dB) |
≤0.5 |
|
Ripple in-band (dB) |
≤0.3 |
|
Isolation (dB) |
≥90 |
|
Average Power (W) |
500 |
|
Return Loss (dB) |
≥20 |
|
Connectors |
DIN-F |
|
PIM3(dBc) ＠ 43dBm×2 |
≤-165 |
|
Impedance (Ω) |
50 |
|
Temperature (℃) |
-40 to +60 |
|
Application |
Indoor |
UMTS2100 Duplexer series allows low cost combination and separation of the Tx and Rx signals in the UMTS band used in Europe, Asia and elsewhere. Isolation from the Tx signals into the Rx band are greater than 50dB, while the less important Rx signals into the Tx band are greater than 35dB.
Units use a suspended substrate design for lower cost, while providing adequate isolation, low PIM and low insertion loss for most applications. Attention to mechanical design, ensures low loss, and high reliability.
For outdoor environment models order other series.
