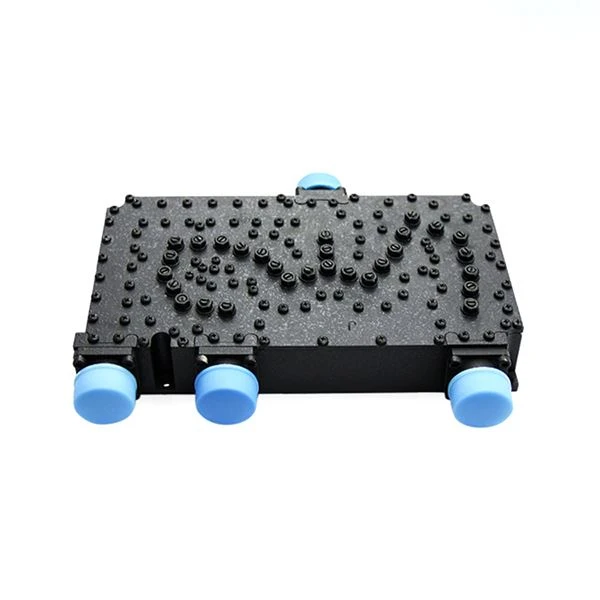

Product Feature
◆ Compact, low weight
◆ Contain GSM,DCS ,and WCDMA band
◆ Low PIM
◆ High reliability
◆ Simple installation
Product Specification
Electrical Specifications | |
Frequency | CH1: 380 to 960MHz CH2: 1710 to 1880MHz CH3: 1920 to 2170MHz |
Return loss/VSWR | £-19dB/1.25 |
Insertion loss | £0.35 |
Isolation | 50dB minimum |
RF input avg power per port | 300 W |
Intermodulation (3rd order) | £-153dBc @ 2 x 20 W |
Impedance | 50 W |
DC Characteristics | DC by-pass between all ports (max 2500 mA) & AISG. |
Environmental Specifications | |
Operating temperature range | -20°C to +60°C |
Storage temperature range | -40°C to +85°C |
Lightning protection | 3kA 10/350us, 8kA 8/20 us |
Relative humidity | 5% - 95% |
Barometric pressure | 55 KPa -106KPa |
Applications | IP67 |
Mechanical Specifications | |
Connectors type | DIN female |
Weight | 3kg |
Outer Dimension(mm) | 190*174*50.5mm |
Mounting | Wall or pole |
Installation hoop | 90-110mm |
Packing | 1Pce in box |
Company Profile
FAQ
1. About price
The price is negotiable. It can be changed according to your quantity.
When you are making an inquiry, please let us know the quantity you want.
2. about sample
Sample is not firee.
3. About MOQ
MOQ is different for different product, please contact us for details.
4. About OEM
Welcome, you can send your own design of equipment and LOGO, we can open new mold and print or emboss any logo for you.
5. About warranty
The warranty is 1 year.
